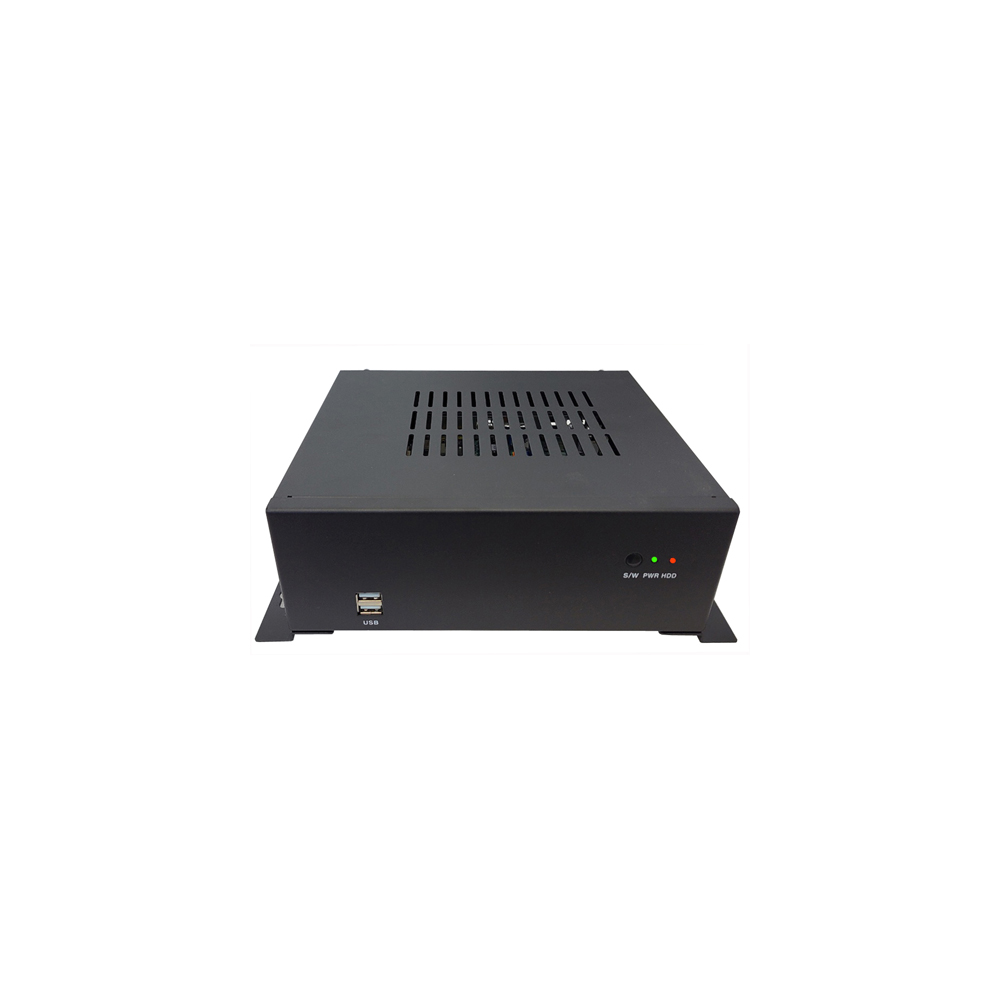

임베디드 산업용컴퓨터 BOX PC(Celeron 6412)
임베디드 컴퓨터로 최적화된 설계로 높은 내구성을 지원하며 슬림 BOX PC 입니다.

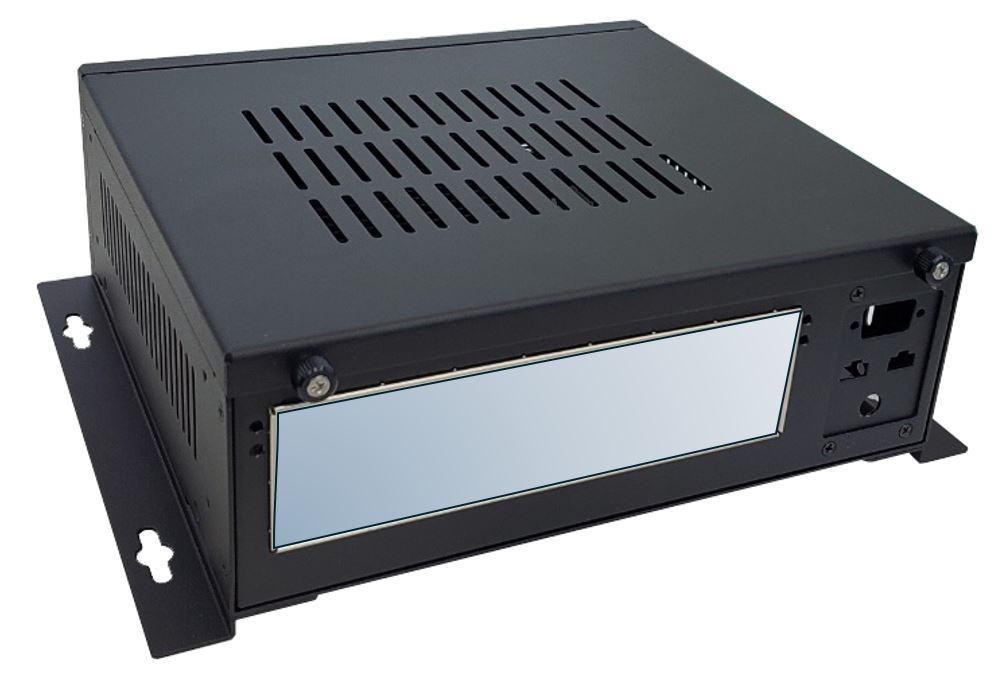

견고하고 심플한 디자인과 동시에 내부에 3.5"BAY 1개와 내부 쿨러 80mm 팬으로 완벽한 공기흐름을 지원합니다.
CPU는 셀러론 J6412 으로 메모리는 노트북용 DDR4 최대 32GB까지 가능하며 시리얼포트 RS-232 2포트, RS-232/422/485 2포트를 지원합니다.

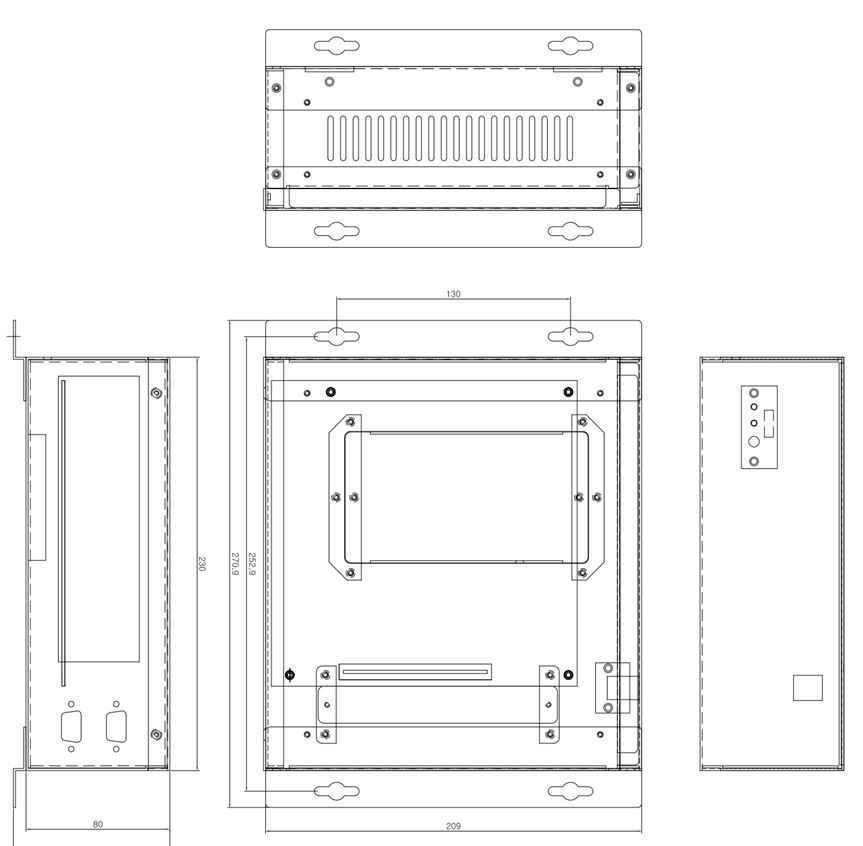

사이즈는 252.9(W) x 80(H) x 209mm(D) 입니다.

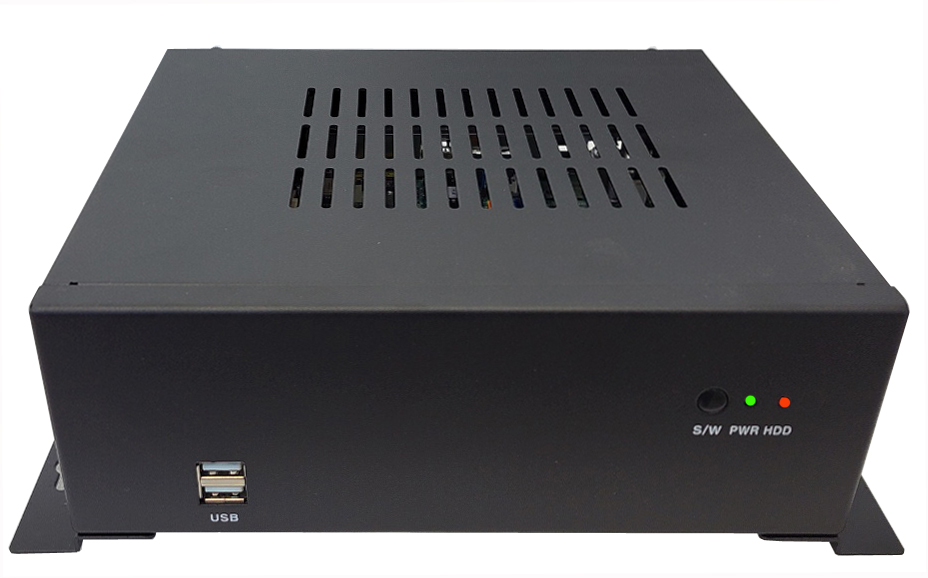

[ 전면부 Front]
2 x USB 2..0 와 스위치 ,하드 LED, 파워 LED (하드랙은 용도에 따라 선택 가능하며 옵션입니다.)

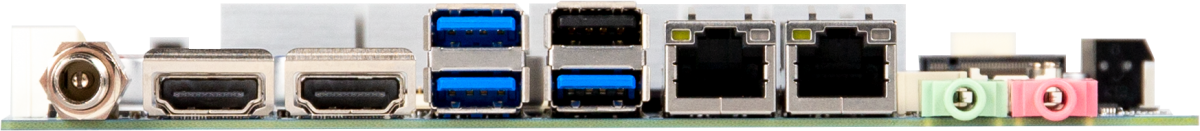

[ 후면부 Rear]
전원부는 DC JACK 스크류 Type으로 되어 있으며 +12V,+19V,+24VDC까지 지원 합니다.
HDMI x 2 , 2 x GbE LAN Ports, 3 x USB 3.2 Gen1, 1 x USB2.0 ,2 x Audio JACKs(Line Out, Mic in)
Serial 1 Port (RS-232/422/485)
옵션
Serial RS-232 or RS-232/422/485 port 중 택 1 가능
Specification
Form Factor
Thin Mini-ITX
170W x 170D(mm)
CPU
Intel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Socket
1 x FCBGA 1493
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet
2 x GbE LAN Ports
Video
Integrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time
(3 independent display outputs)
Audio
Realtek® ALC897
Storage
1 x SATA 6Gb/s Port
Expansion Slots
1 x PCIe x1 (Gen3 x1)
1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s)
1 x 2230 M.2 E-Key (PCIe x1, USB 2.0)
Internal I/O
1 x 4-pin ATX main power connector
1 x SATA Power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
5 x USB 2.0 headers
1 x Buzzer
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x COM header (RS-232 & RI/5V/12V)
2 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Backlight Control header
1 x AT/ATX mode select jumper
1 x ATX control header
Rear l/O
2 x Audio Jacks (Line out, Mic in)
2 x HDMI
2 x RJ45 LAN Ports
3 x USB 3.2 Gen 1
1 x USB 2.0
1 x DC Jack (+12V/19~24VDC)
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.7kg
Including:
Low-Profile IO Shield x 1 (P/N: 12AIO-MJPLN0-00R)
SATA Power cable x 1 (P/N: 25CRI-300B01-K1R)
Order Information
9MEHLJATMR-SI (Box packing)
