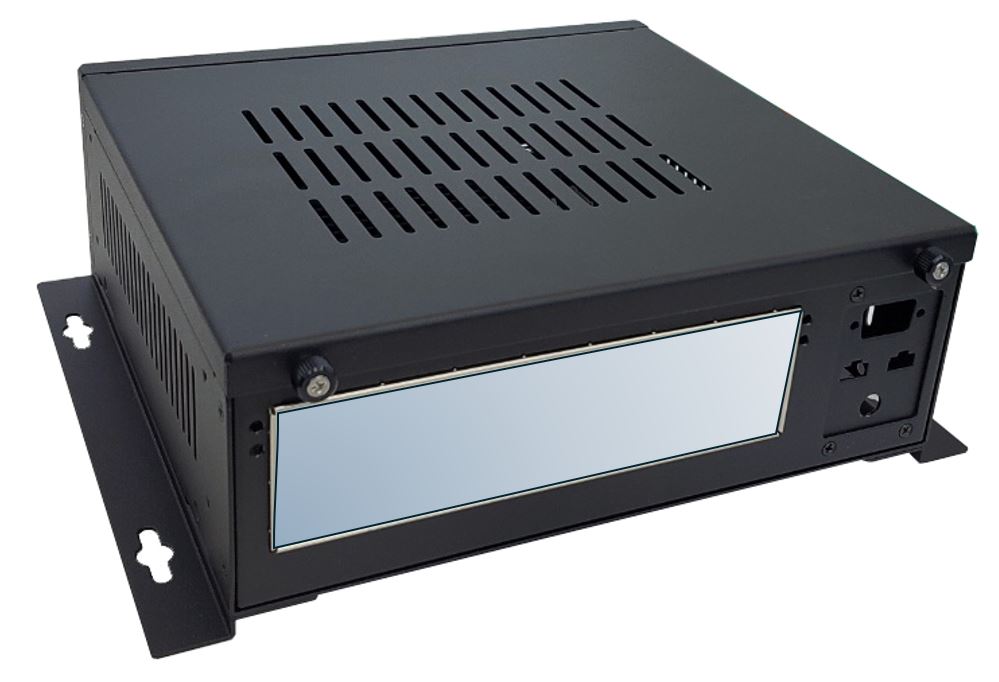

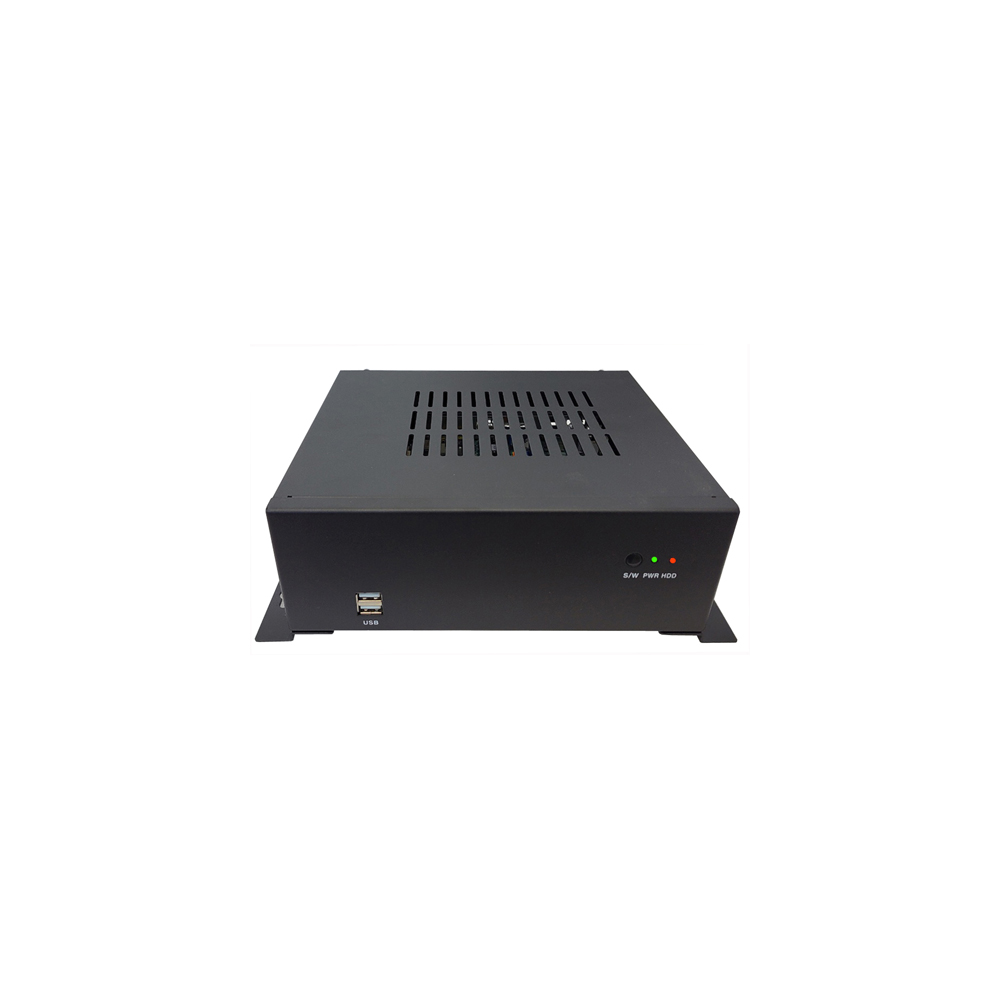

임베디드 산업용컴퓨터 BOX PC(H310)
임베디드 컴퓨터로 최적화된 설계로 높은 내구성을 지원하며 슬림 BOX PC 입니다.
견고하고 심플한 디자인과 동시에 내부에 3.5"BAY 1개와 내부 쿨러 80mm 팬으로 완벽한 공기흐름을 지원합니다.
CPU는 LGA1151소켓으로 8세대,9세대를 지원하며 메모리는 최대 32GB까지 가능하며 시리얼포트 RS-232 2포트, RS-232/422/485 2포트를 지원합니다.

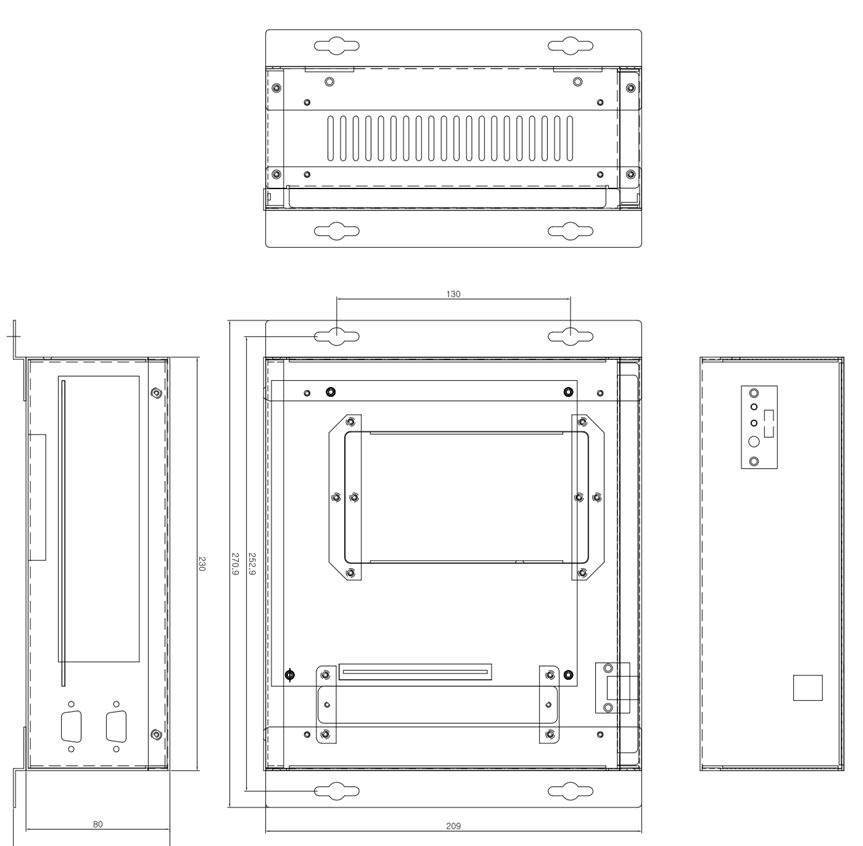

사이즈는 252.9(W) x 80(H) x 209mm(D) 입니다.

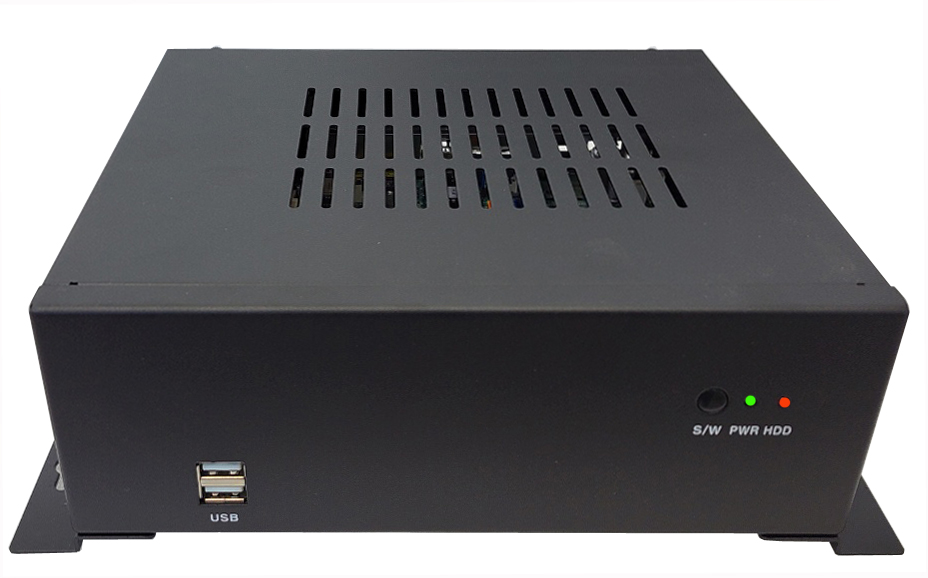

[ 전면부 Front]
2 x USB 2..0 와 스위치 ,하드 LED, 파워 LED (하드랙은 용도에 따라 선택 가능하며 옵션입니다.)

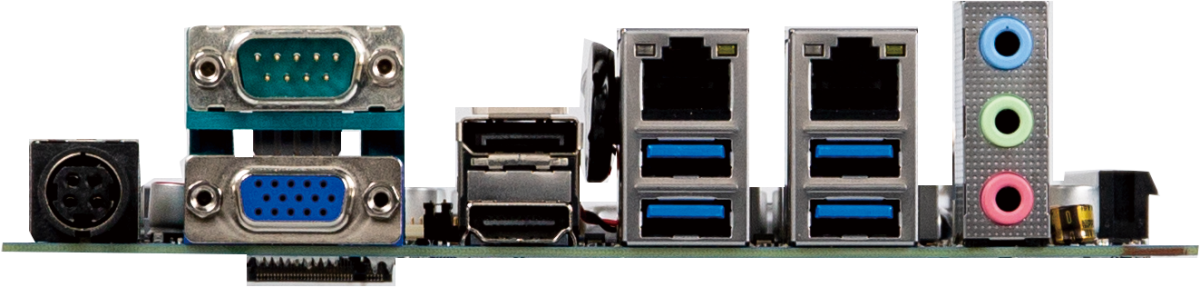

[ 후면부 Rear]
전원부는 DC JACK 4핀 Type으로 되어 있으며 +12V,+19V,+24VDC까지 지원 합니다.
VGA x 1 , HDMI x 1 , 1 x DP Display 를 지원
인텔 2 x GbE LAN Ports (인텔 i219V, 인텔 i211AT)
4 x USB 3.2 Gen1
Serial 1 Port (RS-232/422/485)
옵션
Serial RS-232 or RS-232/422/485 port 중 택 1 가능
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 9th/8th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H310 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2666/2400 MHz memory modules
Ethernet
2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz
* eDP port is alternative with LVDS port, only one can be worked at the same time
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Internal I/O
1 x 4-pin ATX main power connector
1 x SATA power connector
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
2 x COM headers (RS-232)
1 x COM header (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Backlight Control header
1 x Clear CMOS jumper
1 x Buzzer
1 x ATX Control header
1 x AT/ATX mode select jumper
Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x Display Port
1 x VGA
2 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg
Including:
IO Shield x 1 (P/N: 12AIO-MDH114-00R)
SATA power Cable x 1 (P/N: 25CRI-300B01-K1R)
Screw I Head M2.0*L3.5*D5.0 x 1 (P/N: 25KSG-130039-S0R)
Screw Stand Off 12L15 x 1 (P/N: 12KSF-F10303-20R)
Screw I Head M2x3L x 1 (P/N: 25KSG-130032-S0R)
Order Information
9MH310AIMR-SI (Box Packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
