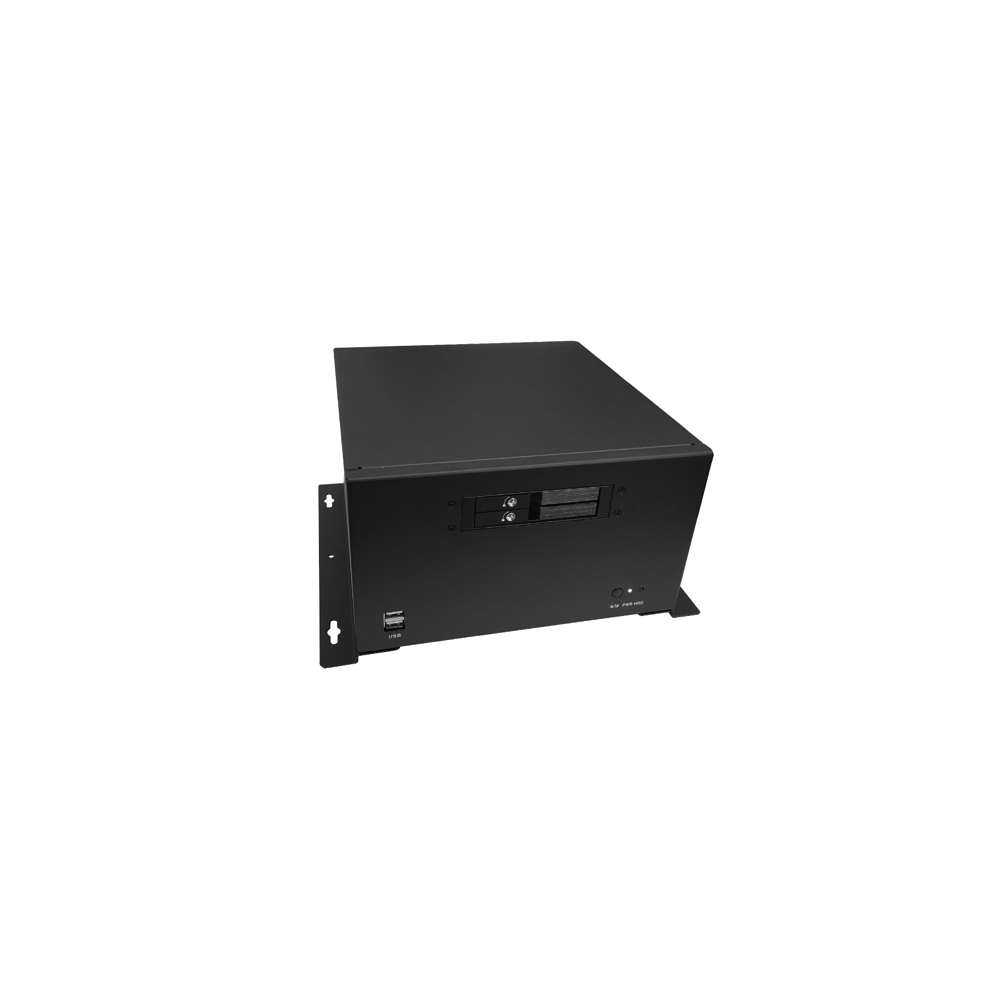

월마운트 산업용컴퓨터(PCIe x16)
임베디드 컴퓨터로 최적화된 설계로 높은 내구성을 지원하며 1슬롯 Wall 마운트 입니다.
견고하고 심플한 디자인과 동시에 전면부 , 3.5"BAY 1개와 내부 쿨러 80mm 팬으로 완벽한 공기흐름을 지원합니다.
CPU는 LGA1155소켓으로 6세대,7세대를 지원하며 메모리는 최대 32GB까지 가능하며 시리얼포트 RS-232/422/485 2포트를 지원합니다.
사이즈는 240(W) x 136.5(H) x 245mm(D) 입니다.

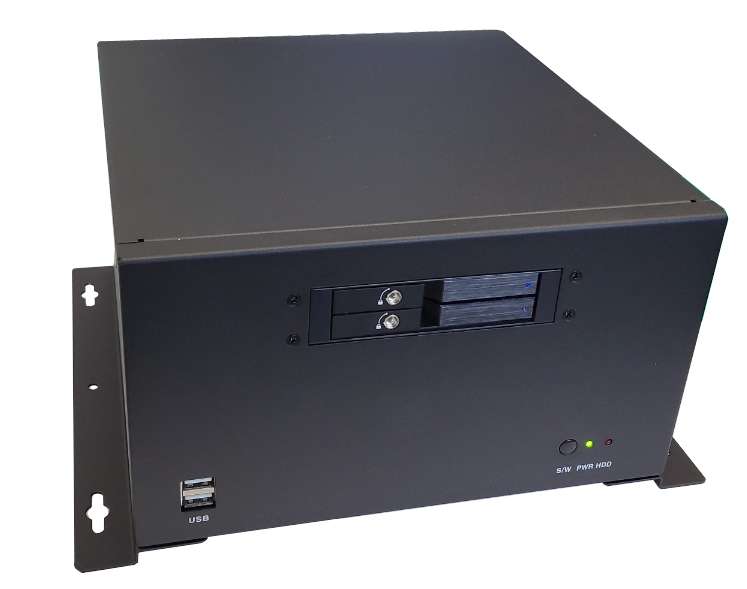

[ 전면부 Front]
2 x USB 2..0 와 스위치 ,하드 LED, 파워 LED (하드랙은 용도에 따라 선택 가능하며 옵션입니다.)

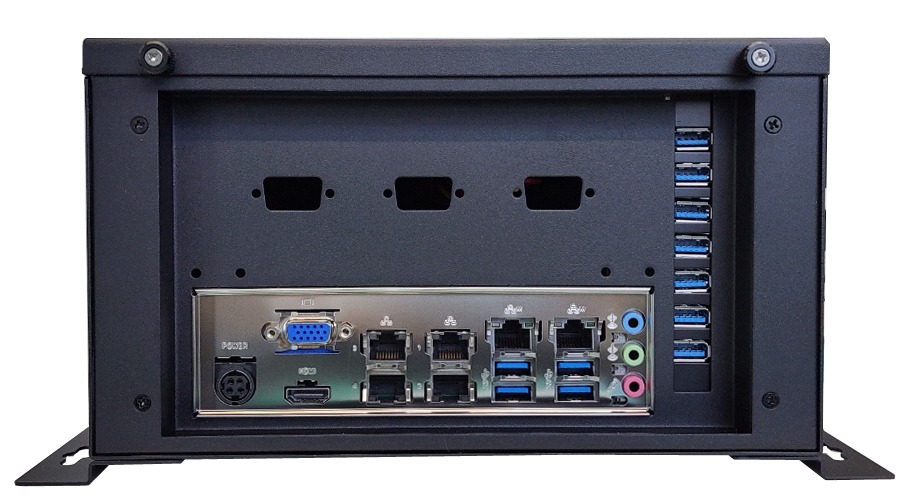

[ 후면부 Rear]
전원부는 DC JACK 4핀 Type으로 되어 있으며 +12V,+19V,+24VDC까지 지원 합니다.
PCIe x16배속 1슬롯
VGA x 1 , HDMI x 1 듀얼 Display 를 지원
인텔 6 x GbE LAN Ports (1 x Intel® I219V and 5 x Intel® I211AT)
4 x USB 3.2 Gen1
Serial 2 Port (RS-232/422/485) 옵션
Specification
Form Factor
Mini-ITX
170W x 170D(mm)
CPU
Support for 7th/6th Generation
Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package
TDP under 65W
L3 cache varies with CPU
Socket
1 x LGA 1151
Chipset
Intel® H110 Express Chipset
Memory
2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400/2133 MHz memory modules
Ethernet
6 x GbE LAN Ports (1 x Intel® I219V and 5 x Intel® I211AT)
Video
Integrated Graphics Processor - depends on CPU:
1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz
1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz
(2 independent display outputs)
Audio
Realtek® Audio Codec
Storage
2 x SATA 6Gb/s Ports
Expansion Slots
1 x PCIe x16 (Gen3 x16)
1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)
1 x Full-size mSATA
Internal I/O
1 x 4-pin ATX main power connector
2 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
6 x USB 2.0 headers
2 x COM headers (RS-232/422/485 & RI/5V/12V)
1 x GPIO (8-bits) & SMBus header
1 x Clear CMOS jumper
1 x Buzzer
1 x AT/ATX mode select jumper
Rear l/O
3 x Audio Jacks (Line in, Line out, Mic in)
1 x HDMI
1 x VGA
6 x RJ45 LAN Ports
4 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V/+24VDC)
TPM
1 x TPM header
OS Compatibility
Windows 10 (x64)
Windows 7 (x64)
Operating Properties
Operating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Packing Content
Carton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs
Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg
Including:
IO Shield x 1 (P/N: 12AIO-MH1100-00R)
Screw Flat Head M2*2.5 x 1 (P/N: 12KS2-110202-01R)
Screw Stand Off x 1 (P/N: 12KSF-F10303-20R)
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Screw I Head M2x3L x 1 (P/N: 25KSG-130032-S0R)
Order Information
9MH110AIMR-SI (Box packing)
Optional Kit
CPU Cooler : 25ST0-039520-Y0R
CPU Cooler Backplate : 12KRH-0A1155-30R
TPM 2.0 module: 9CTM000NR-00
