- Intel® Pentium® N4200 processor
- 32GB onboard eMMC memory
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN Ports (Realtek® RTL8111HS)
- 2 x HDMI Ports
- 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
- 1 x Micro SD card slot
- Compatible with Windows 10 IoT 64bit and Ubuntu 16.04 LTS
- IoT applications
- Commercial PC System

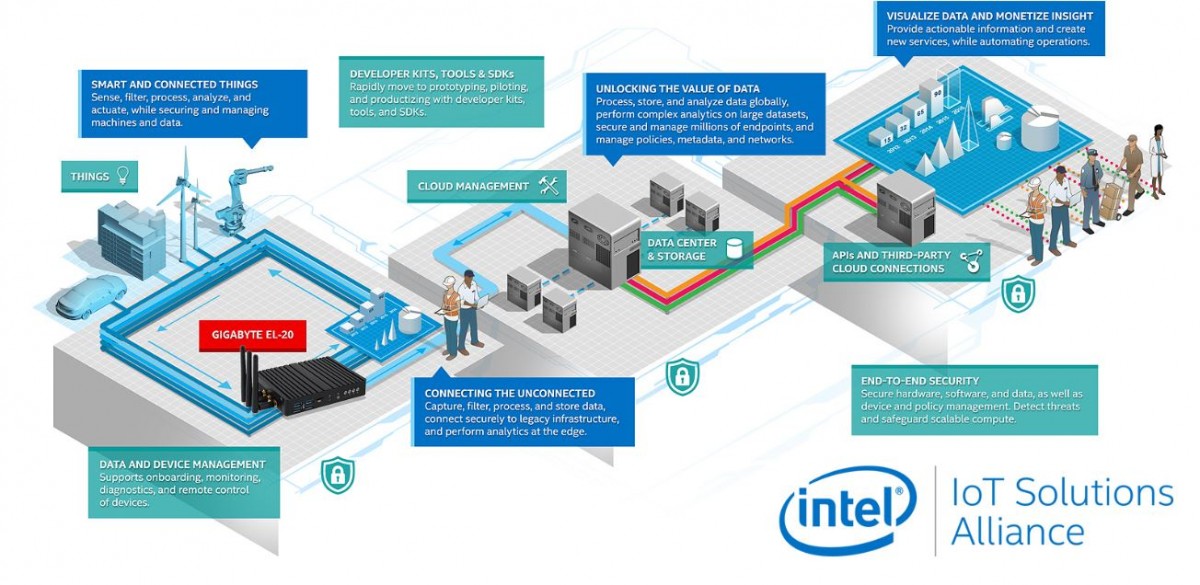

Simple Devices for the IoT Era
Being an associate member of the Intel IoT Solutions Alliance, GIGAIPC (GIGABYTE Group) is at the heart of the booming Internet of Things computing market. We create reference designs for Intel's new platforms, and develop them further into large ranges of products for IoT professionals. It is a small form factor industrial computer, with all the features and flexibility required to be a perfect IoT gateway solution bringing unconnected legacy systems and aggregate their data output.
Specification
Dimension 140.8W x 107.5D x 29.5H mm
CPU Intel® Pentium® N4200 processor
14nm, 4 cores, 4 threads
1.10 - 2.50 GHz
2MB L2 cache
6W max. TDP
* Intel® Celeron® processor N3350 is available for optional sku
Socket 1 x BGA 1296
Memory 2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB, dual channel
1600/1866MHz
Pre-installed DDR3L memory module
Flash Memory 32GB eMMC
LAN 2 x GbE LAN Ports (Realtek® RTL8111HS)
Graphic Support Integrated in the SoC - Intel® HD Graphics 505
2 x HDMI ports, supporting a maximum resolution of 3840x2160 @30Hz
* Support for HDMI 1.4b version
Audio Realtek® Audio Codec
Storage 1 x Micro SD card slot
Expansion Slots 1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Zigbee module supported in option
1 x M.2 slot:
- E-key
- PCIe Genb2x1
- Pre-installed Wifi module

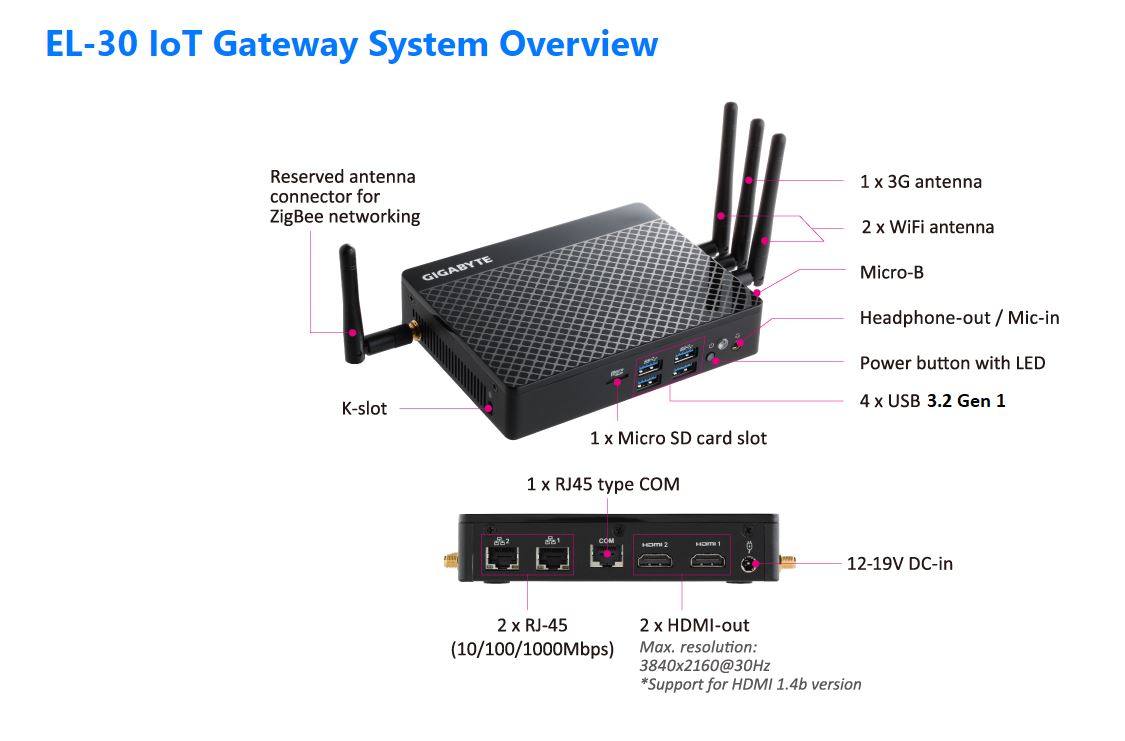

Front I/O 4 x USB 3.2 Gen 1
1 x Micro SD card slot
1 x Audio combo Jack (Headphone-out / MIC-in)
1 x Power button with LED
1 x HDD/SSD activity LED

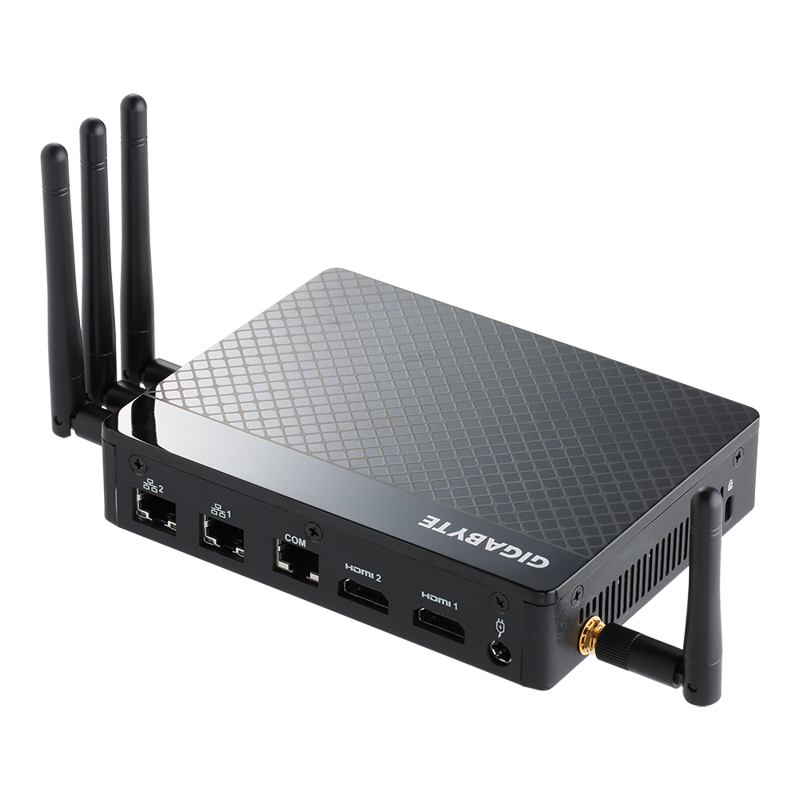

Rear I/O 2 x RJ45 LAN Ports
2 x HDMI
1 x COM Port (RS-232/485)(RJ45 type)
1 x DC-in

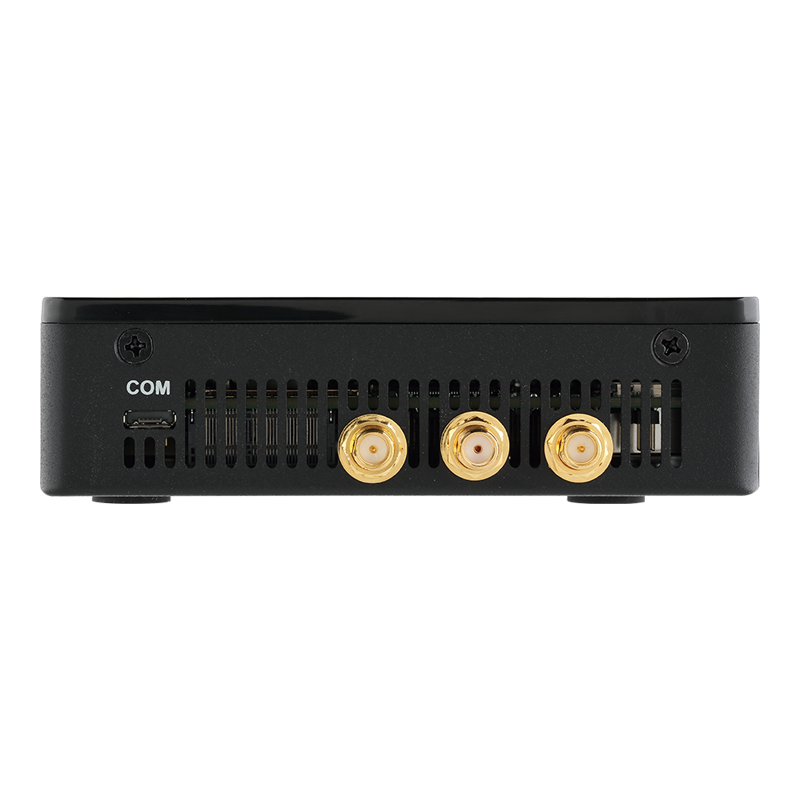

Side I/O 1 x Micro-B 5-pin *RS232 full-duplex port (TxD, RxD, CTS, RTS, GND)
*[NOTE]:
1. Please check the pin definition and ensure the port is suitable for your peripherals.
2. The serial driver GIGABYTE provided for Windows 10 is a trial version, please contact your peripheral vendor to get the correct driver.
TPM 1 x TPM header
Power AC 100~240V
19V DC-in
65W / 3.42A
OS Compatibility Windows 10 64bit
Windows 10 IoT 64bit
Ubuntu 16.04 LTS
Operation Temperature Operating temperature: 0°C to 40°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Weight 560g
Packaging Content 1 x Quick start guide
1 x EL30 system
1 x 19V AC/DC power adapter
1 x US type power cord
* Please contact region sales for antenna modules
System Fans Fanless
Motherboard MZAPLFP
Order Information 9BTCV9WMR-SI
