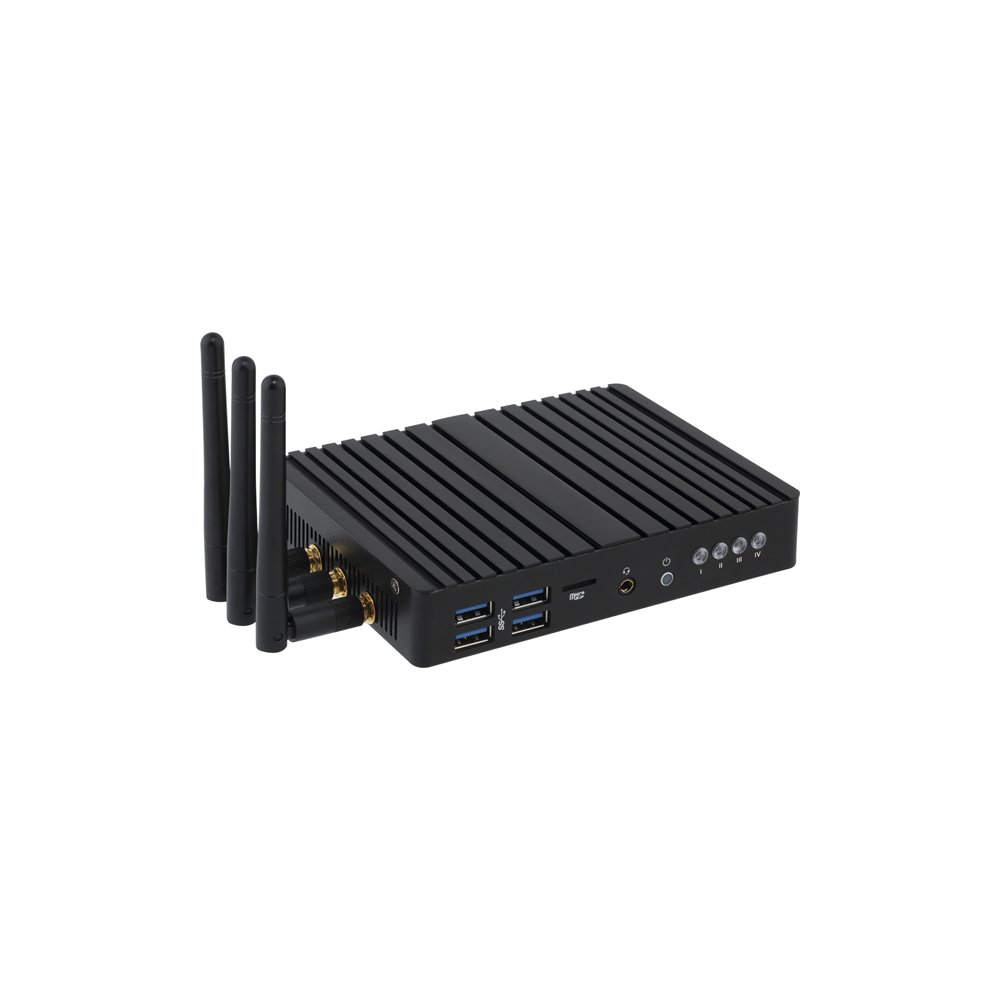

EL-20-3700-32GB (rev. 2.0)
  • ntel® Bear Ridge IoT Gateway Solution
spec
Ordering Information
6BTCV5WMR-00
Key Features
  • Intel® Pentium® N3710 processor
  • 2 x SO-DIMM DDR3L slots
  • 2 x GbE LAN Ports (Realtek® RTL8111HS)
  • 32GB onboard eMMC memory
  • 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
  • 1 x SDXC card slot
  • Supports Windowsu00ae 7/ 8.1/ 10 and Android 5.1
Application
  • IoT applications


    Simple Devices for the IoT Era

    Being an associate member of the Intel IoT Solutions Alliance GIGAIPC (GIGABYTE Group) is at the heart of the booming Internet of Things computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions.

    The EL-20 series is one of those products, developed as the reference design for Intel’s Bear Ridge platform. It is a small form factor (SFF) industrial computer with leading performance and security, robust build quality and the Input/output (I/O) flexibility required of the perfect IoT gateway solution. Business deploying the EL-20 series IoT gateways can quickly establish and future-proof their environments. By using it as a solution to bridge unconnected legacy system, aggregate data output or establish secure data flow between edge devices and the cloud.




Specification


Dimension

140.8W x 107.5D x 27H mm

CPU

Intel® Pentium® N3710 processor

14nm, 4 cores, 4 threads

1.6 - 2.56 GHz

2MB L2 cache

6W max. TDP

Socket

1 x BGA 1170

Memory

2 x SO-DIMM slots

1.35V DDR3L memory

Up to 8GB

1333/1600MHz

Flash Memory

32GB eMMC

LAN

2 x GbE LAN Ports (Realtek® RTL8111HS)

Graphic Support

Intel HD Graphics supports dual display

Max. resolution via HDMI ports:

3840x2160 @30Hz or

2560x1600 @60Hz with 2 memory installed

Max. resolution via eDP:

2560x1440 @60Hz with 2 memory installed

AudioRealtek® Audio Codec
Storage

1 x SDXC card slot

Expansion Slots

1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)

1 x Half-size Mini-PCIe slot (for pre-installed WiFi+BT module)


3G module in option

Pre-installed:

- 1 x WiFi + Bluetooth card

- Intel Dual Band Wireless-AC 3160 - Supports IEEE 802.11b/g/n/ac

- Supports Bluetooth 4.0

- Bluetooth function does not support under Windows 7 embedded OS

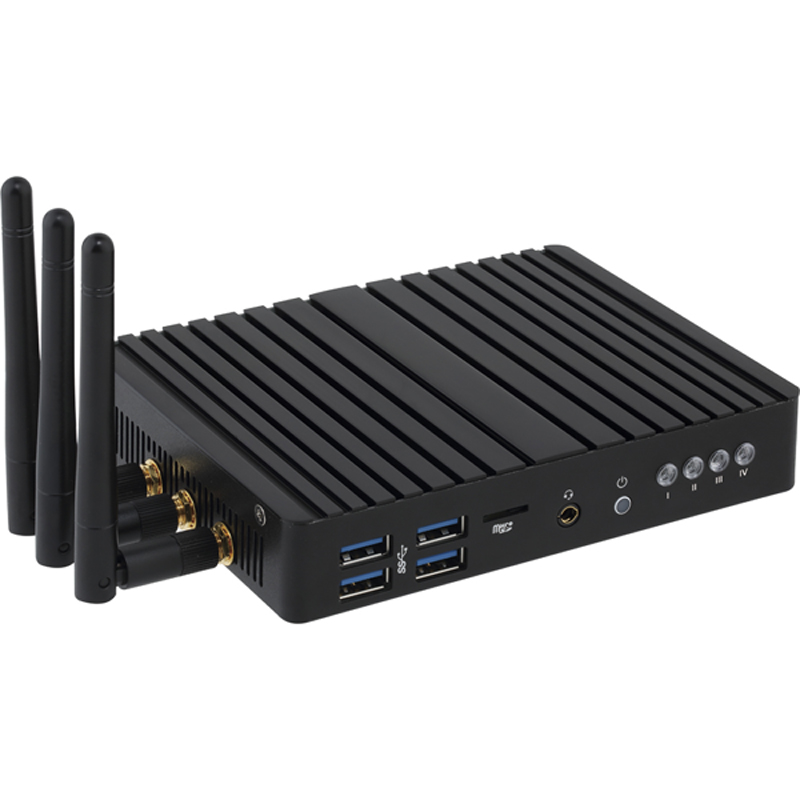

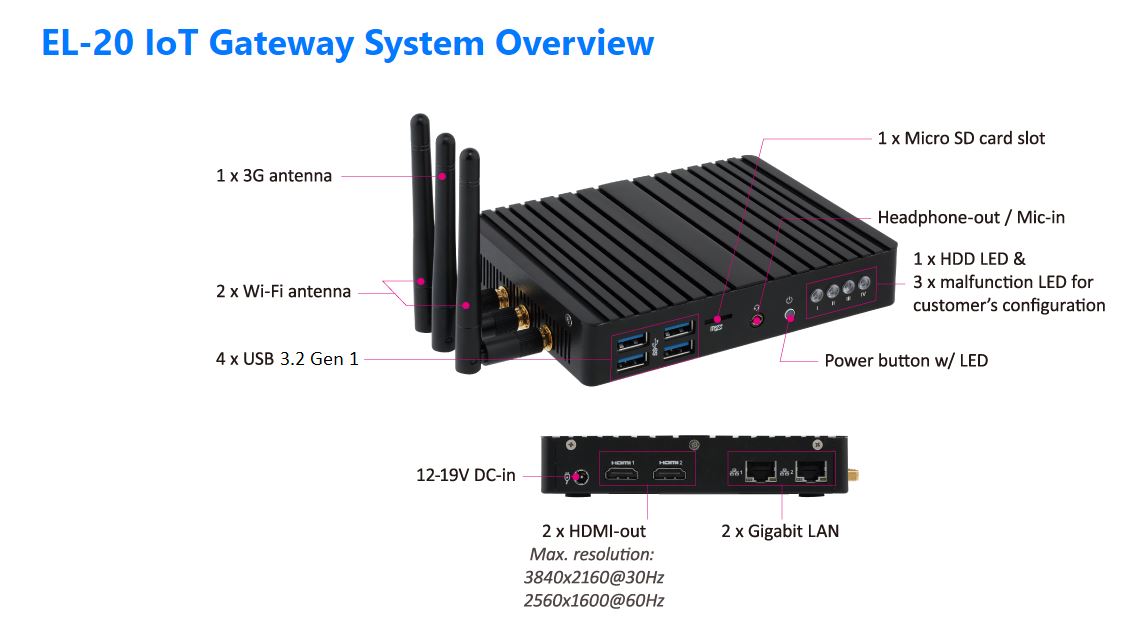

Front I/O

4 x USB 3.2 Gen 1

1 x SDXC card slot

1 x Headphone-out / MIC-in

1 x Power button with LED

1 x HDD activity LED

3 x LEDs reserved for user configuration

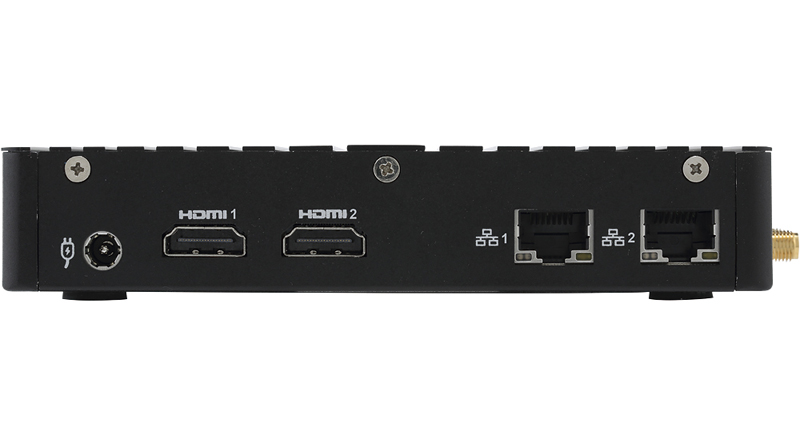

Rear I/O

1 x DC-in

2 x HDMI v1.4b

2 x RJ45 LAN Ports

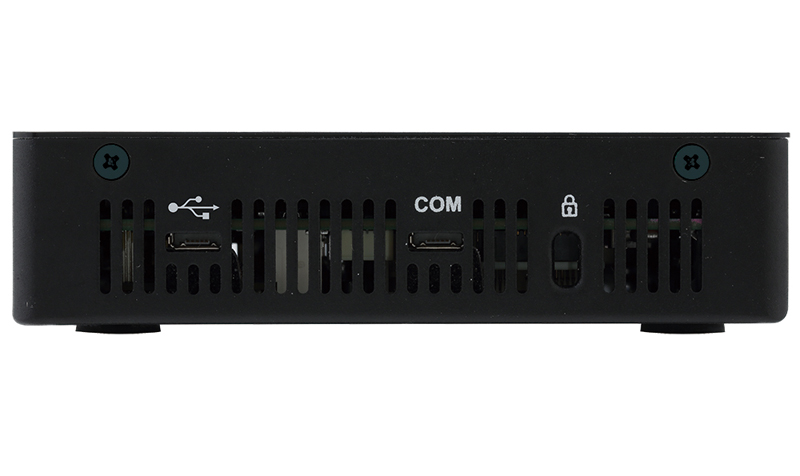

Side I/O

1 x Micro-B USB 2.0

1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND)


*[NOTE]:

1. Please check the pin definition and ensure the port is suitable for your peripherals.

2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.

TPM

1 x TPM header

Power

AC 100~240V

19V DC-in

65W/3.42A

OS Compatibility

Windows 10 64bit

Windows 8.1 64bit

Windows 7 32bit / 64bit

Ubuntu 15.10

Ubuntu 16.04 LTS

Android 5.1


- Please download the "Windows USB Installation Tool" from GIGABYTE′s website and install it before installing Windows 7

Operation Temperature

Operating temperature: 0°C to 40°C

Operating humidity: 0%-90% (non-condensing)

Non-operating temperature: -20°C to 60°C

Non-operating humidity: 0%-95% (non-condensing)

Weight

560g

Packaging Content

1 x Quick start guide

1 x EL-20-3700

1 x Intel Dual Band Wireless-AC 3160 card

1 x 19V AC/DC power adapter

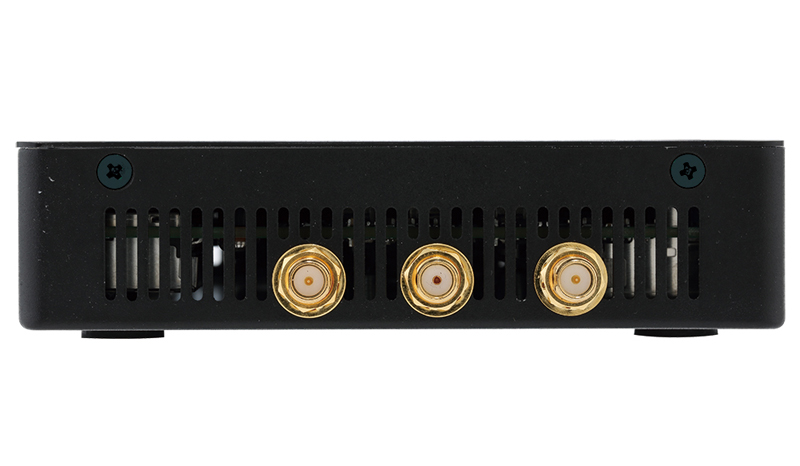

2 x WiFi antennas

1 x 3G antenna

System Fans

Fanless

Motherboard

MZBSWFP

Order Information

6BTCV5WMR-00
