- Intel® Celeron® N3060 processor
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN Ports (Realtek® RTL8111HS)
- 32GB onboard eMMC memory
- 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
- 1 x SDXC card slot
- Supports Windows 7/ 8.1/ 10 and Android 5.1
- IoT applications
Simple Devices for the IoT Era

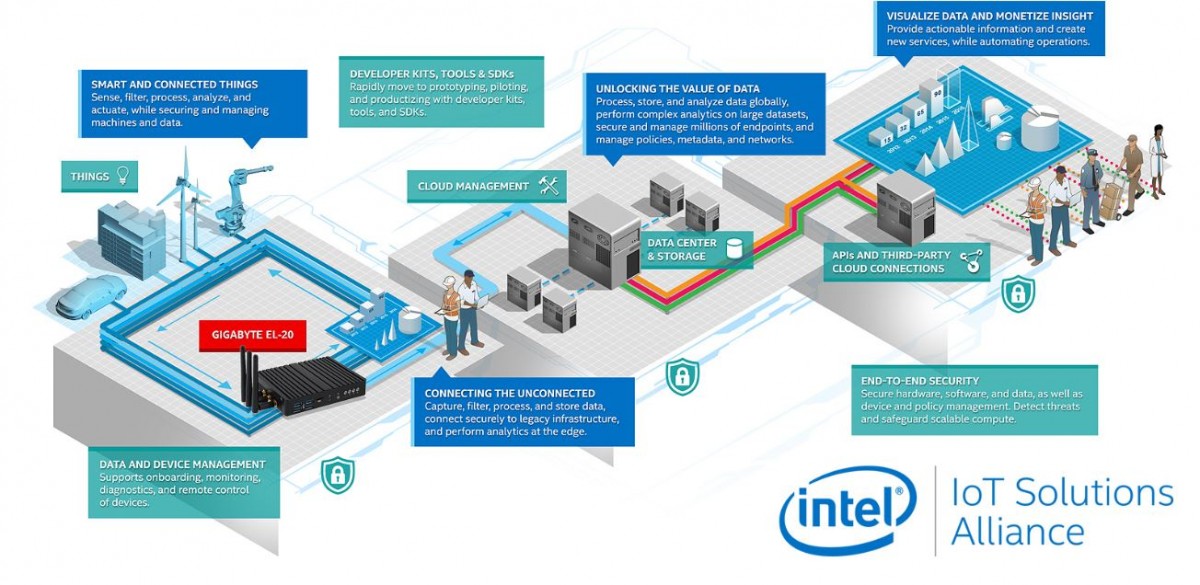

Being an associate member of the Intel IoT Solutions Alliance GIGAIPC (GIGABYTE Group) is at the heart of the booming Internet of Things computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions.
The EL-20 series is one of those products, developed as the reference design for Intel’s Bear Ridge platform. It is a small form factor (SFF) industrial computer with leading performance and security, robust build quality and the Input/output (I/O) flexibility required of the perfect IoT gateway solution. Business deploying the EL-20 series IoT gateways can quickly establish and future-proof their environments. By using it as a solution to bridge unconnected legacy system, aggregate data output or establish secure data flow between edge devices and the cloud.
Specification
| Dimension | 140.8W x 107.5D x 27H mm |
| CPU | Intel® Celeron® N3060 processor 14nm, 2 cores, 2 threads 1.6 - 2.48 GHz 2MB L2 cache 6W max. TDP |
| Socket | 1 x BGA 1170 |
| Memory | 2 x SO-DIMM slots 1.35V DDR3L memory Up to 8GB 1333/1600MHz Pre-installed 1 x 2GB DDR3L memory module |
| Flash Memory | 32GB eMMC |
| LAN | 2 x GbE LAN Ports (Realtek® RTL8111HS) |
| Graphic Support | Intel HD Graphics supports dual display Max. resolution via HDMI ports: 3840x2160 @30Hz or 2560x1600 @60Hz with 2 memory installed |
| Audio | Realtek® Audio Codec |
| Storage | 1 x SDXC card slot |
| Expansion Slots | 1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage) 1 x Half-size Mini-PCIe slot (for WiFi+BT module) |

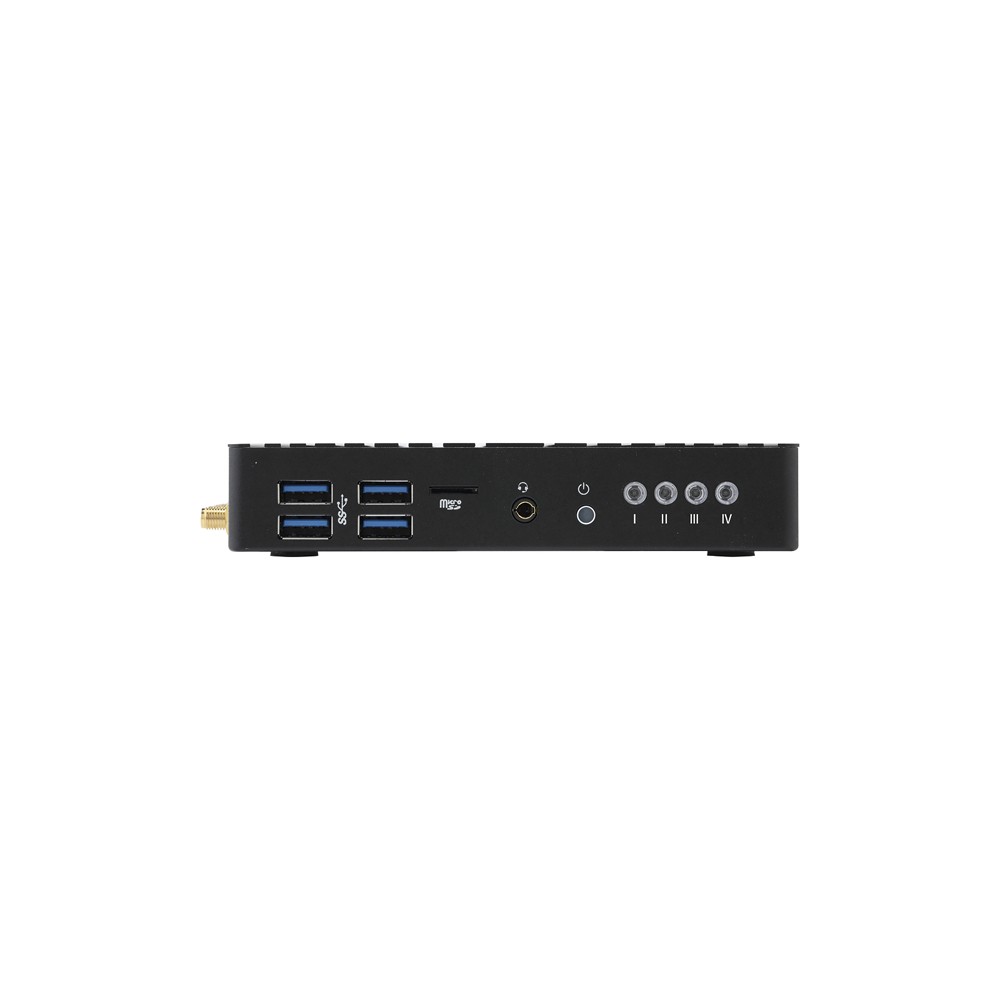

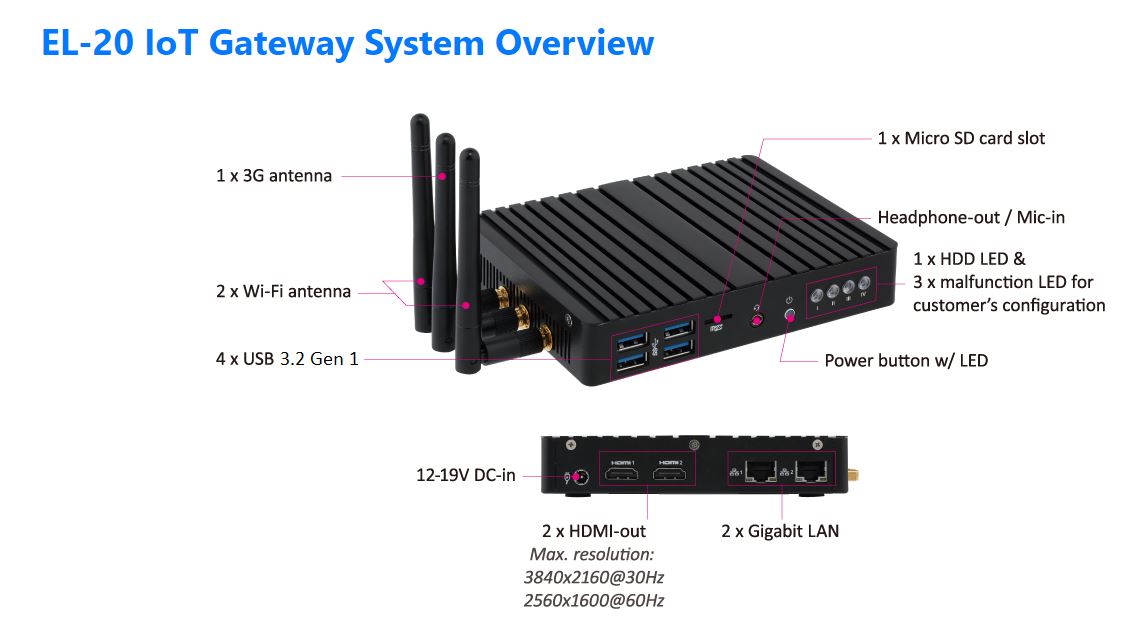

| Front I/O | 4 x USB 3.2 Gen 1 1 x SDXC card slot 1 x Headphone-out / MIC-in 1 x Power button with LED 1 x HDD activity LED 3 x LEDs reserved for user configuration |
| Rear I/O | 1 x DC-in 2 x HDMI v1.4b 2 x RJ45 LAN Ports |
| Side I/O | 1 x Micro-B USB 2.0 1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND) *[NOTE]: 1. Please check the pin definition and ensure the port is suitable for your peripherals. 2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver. |
| TPM | - |
| Power | AC 100~240V 19V DC-in 65W/3.42A |
| OS Compatibility | Windows 10 64bit Windows 8.1 64bit Windows 7 32bit / 64bit Ubuntu 15.10 Ubuntu 16.04 LTS Android 5.1 - Please download the "Windows USB Installation Tool" from GIGABYTE′s website and install it before installing Windows 7 |
| Operation Temperature | Operating temperature: 0°C to 40°C Operating humidity: 0%-90% (non-condensing) Non-operating temperature: -20°C to 60°C Non-operating humidity: 0%-95% (non-condensing) |
| Weight | 560g |
| Packaging Content | 1 x Quick start guide 1 x EL-20-3060-32GB 1 x 19V AC/DC power adapter 1 x US type power cord * Please contact region sales for antenna modules |
| System Fans | Fanless |
| Motherboard | MZBSWIP |
| Order Information | 9BTCV7MR-SI |
