- Intel® Celeron® N3060 processor
- 2 x SO-DIMM DDR3L slots
- 2 x GbE LAN Ports (Realtek® RTL8111HS)
- 8GB onboard eMMC memory
- 1 x Full-size Mini-PCIe slot for 3G module or mSATA storage
- 1 x SDXC card slot
- Supports Windowsu00ae 7/ 8.1/ 10 and Android 5.1
- IoT applications
- Commercial PC System
- Embedded & Industrial Applications

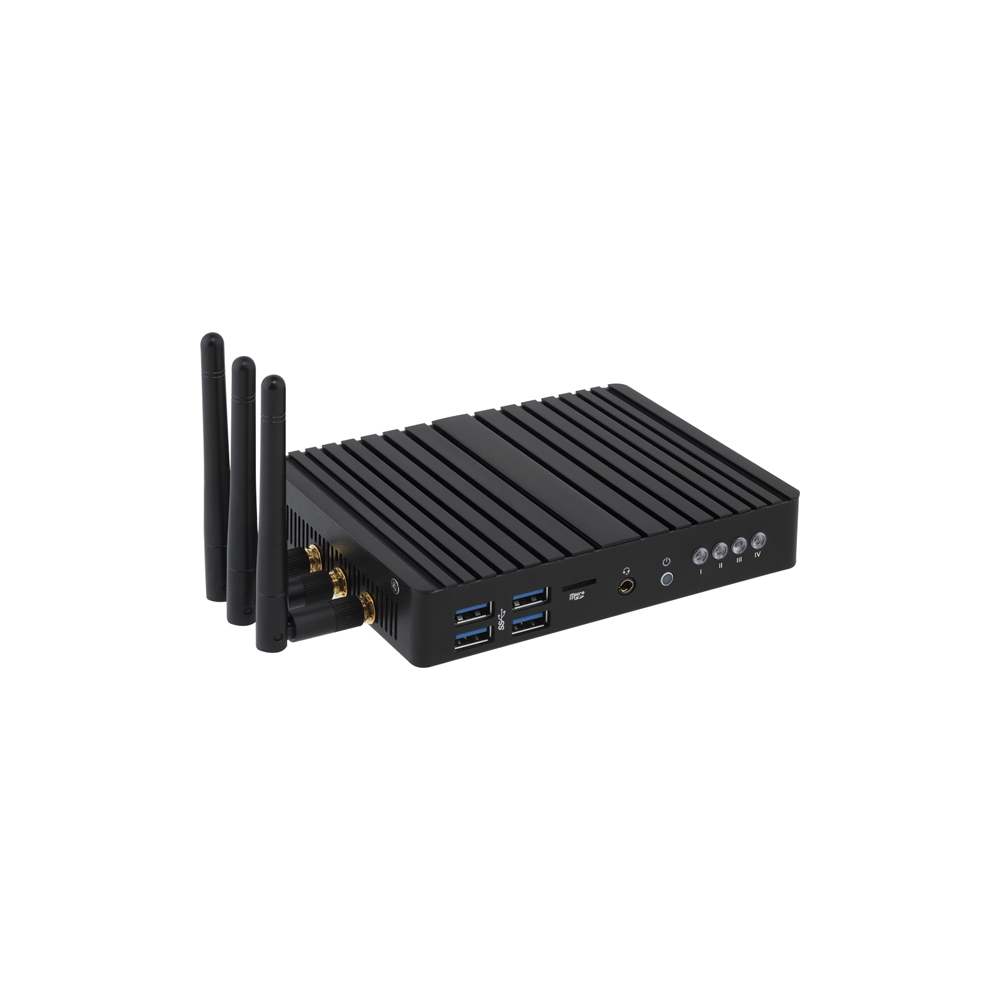

Simple Devices for the IoT Era

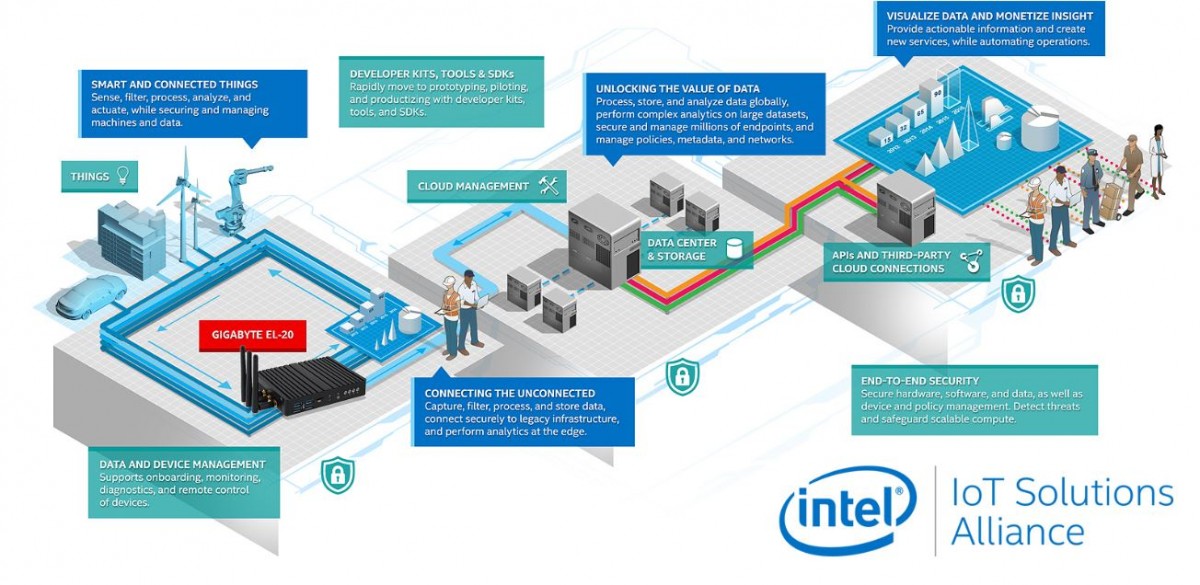

Being an associate member of the Intel IoT Solutions Alliance GIGAIPC (GIGABYTE Group) is at the heart of the booming Internet of Things computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions.
The EL-20 series is one of those products, developed as the reference design for Intel’s Bear Ridge platform. It is a small form factor (SFF) industrial computer with leading performance and security, robust build quality and the Input/output (I/O) flexibility required of the perfect IoT gateway solution. Business deploying the EL-20 series IoT gateways can quickly establish and future-proof their environments. By using it as a solution to bridge unconnected legacy system, aggregate data output or establish secure data flow between edge devices and the cloud.
Specification
Dimension 140.8W x 107.5D x 27H mm
CPU Intel® Celeron® N3060 processor
14nm, 2 cores, 2 threads
1.6 - 2.48 GHz
2MB L2 cache
6W max. TDP
Socket 1 x BGA 1170
Memory 2 x SO-DIMM slots
1.35V DDR3L memory
Up to 8GB
1333/1600MHz
Flash Memory 8GB eMMC
LAN 2 x GbE LAN Ports (Realtek® RTL8111HS)
Graphic Support Intel HD Graphics supports dual display
Max. resolution via HDMI ports:
3840x2160 @30Hz or
2560x1600 @60Hz with 2 memory installed
Max. resolution via eDP:
2560x1440 @60Hz with 2 memory installed
Audio Realtek® Audio Codec Storage 1 x SDXC card slot
Expansion Slots 1 x Full-size Mini-PCIe slot (for 3G module or mSATA storage)
1 x Half-size Mini-PCIe slot (for pre-installed WiFi+BT module)
3G module in option
Pre-installed:
- 1 x WiFi + Bluetooth card
- Intel Dual Band Wireless-AC 3160 - Supports IEEE 802.11b/g/n/ac
- Supports Bluetooth 4.0
- Bluetooth function does not support under Windows 7 embedded OS

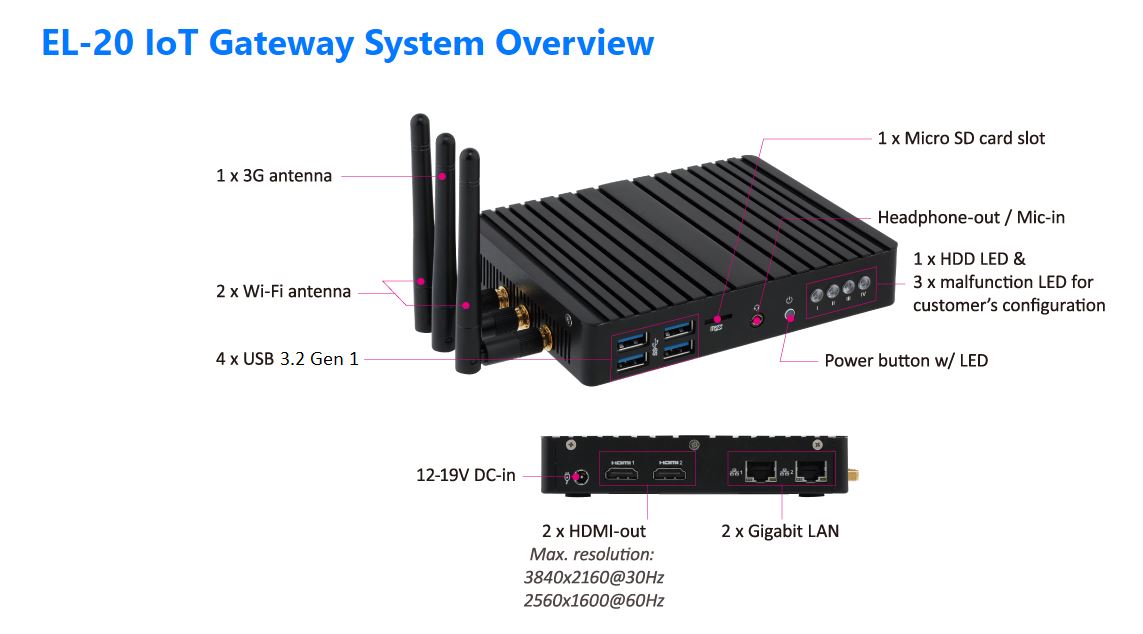

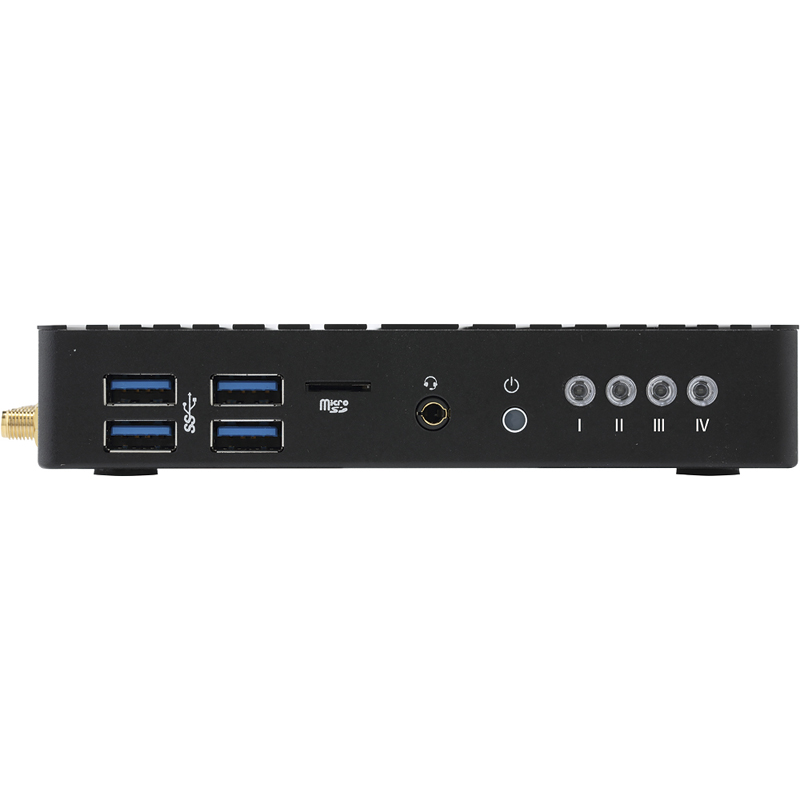

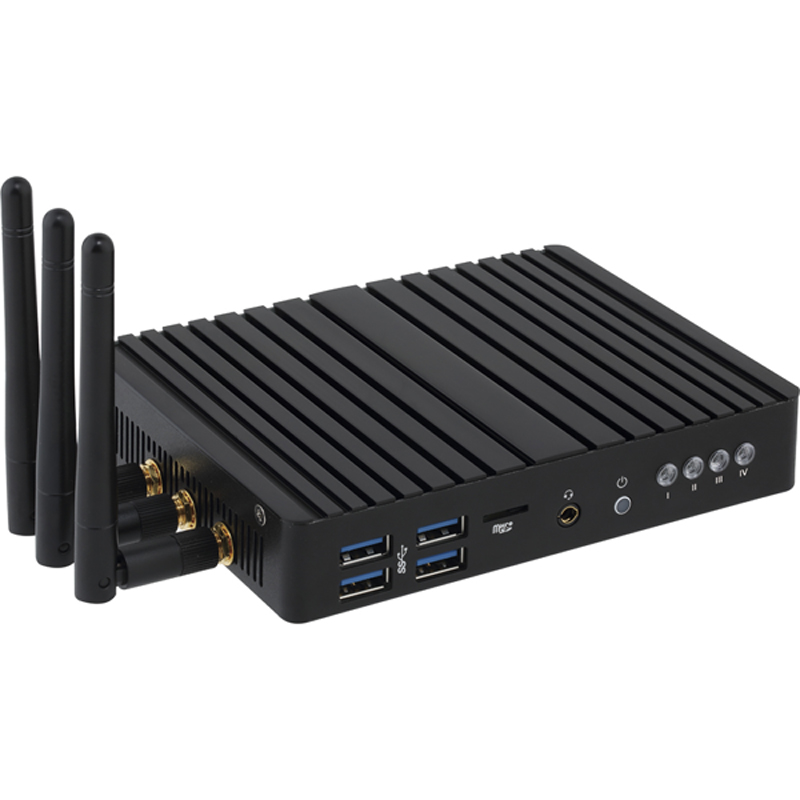

Front I/O 4 x USB 3.2 Gen 1
1 x SDXC card slot
1 x Headphone-out / MIC-in
1 x Power button with LED
1 x HDD activity LED
3 x LEDs reserved for user configuration

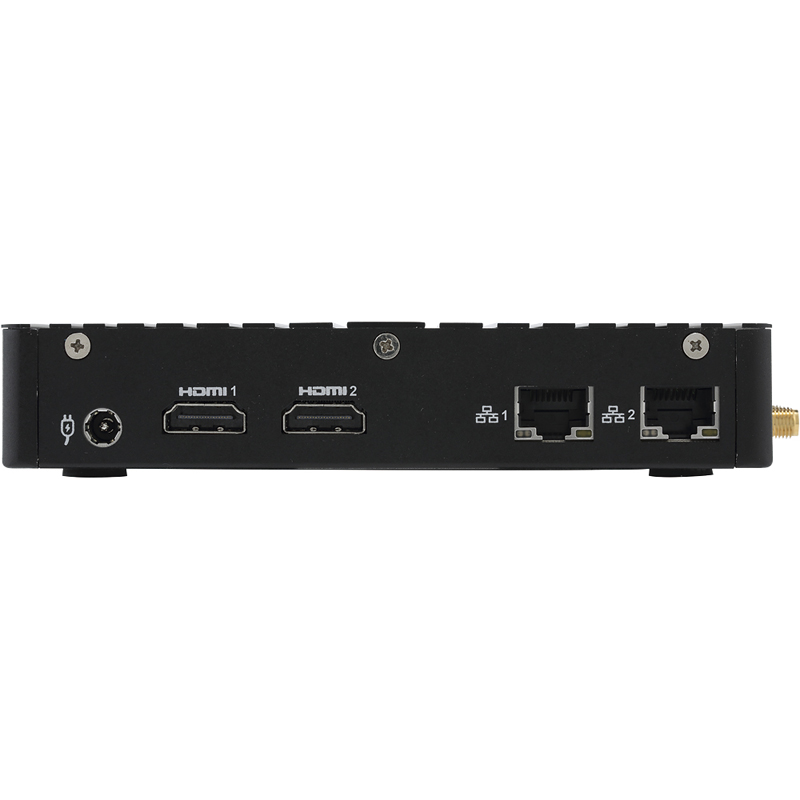

Rear I/O 1 x DC-in
2 x HDMI v1.4b
2 x RJ45 LAN Ports

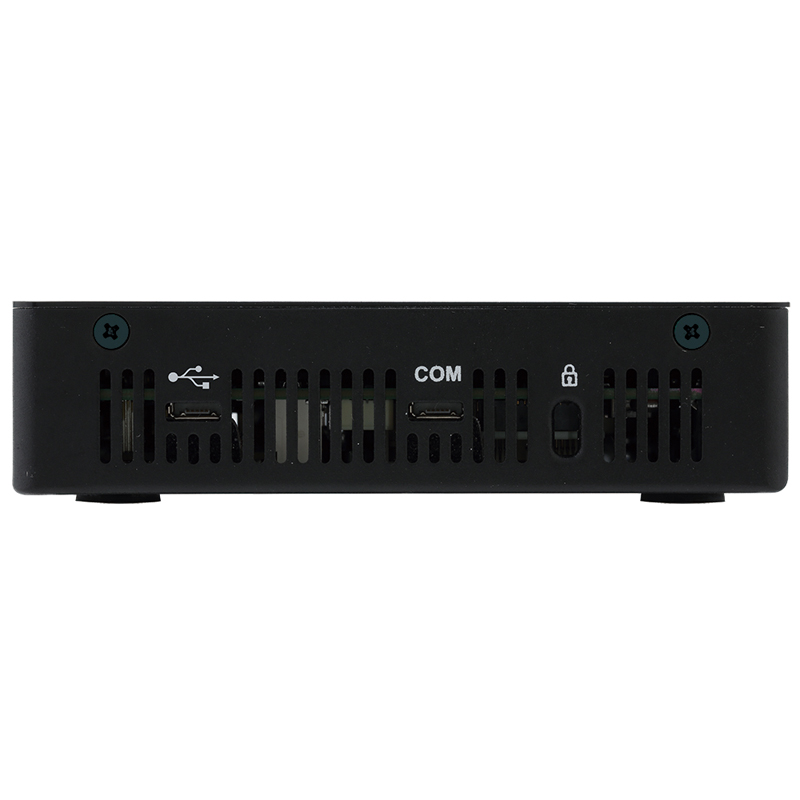

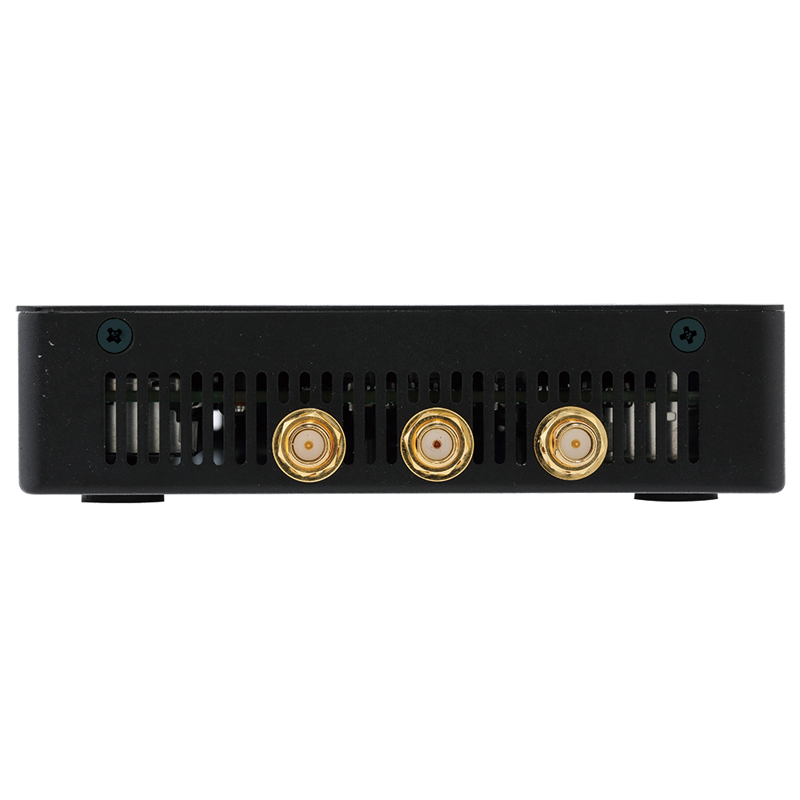

Side I/O 1 x Micro-B USB 2.0
1 x Micro-B 5-pin *RS232 full-duplex port ( TxD, RxD, CTS, RTS, GND)
[NOTE]:
1. Please check the pin definition and ensure the port is suitable for your peripherals.
2. The serial driver GIGABYTE provided for Windows 10 and 8 is a trial version, please contact your peripheral vendor to get the correct driver.
TPM 1 x TPM header
Power AC 100~240V
19V DC-in
65W/3.42A
OS Compatibility Windows 10 64bit
Windows 8.1 64bit
Windows 7 32bit / 64bit
Ubuntu 15.10
Ubuntu 16.04 LTS
Android 5.1
- Please download the "Windows USB Installation Tool" from GIGABYTE′s website and install it before installing Windows 7
Operation Temperature Operating temperature: 0°C to 40°C
Operating humidity: 0%-90% (non-condensing)
Non-operating temperature: -20°C to 60°C
Non-operating humidity: 0%-95% (non-condensing)
Weight 560g
Packaging Content 1 x Quick start guide
1 x EL-20-3050-8GB
1 x Intel Dual Band Wireless-AC 3160 card
1 x 19V AC/DC power adapter
2 x WiFi antennas
1 x 3G antenna
System Fans Fanless
Motherboard MZBSWHP
Order Information 6BTCV6WMR-00
