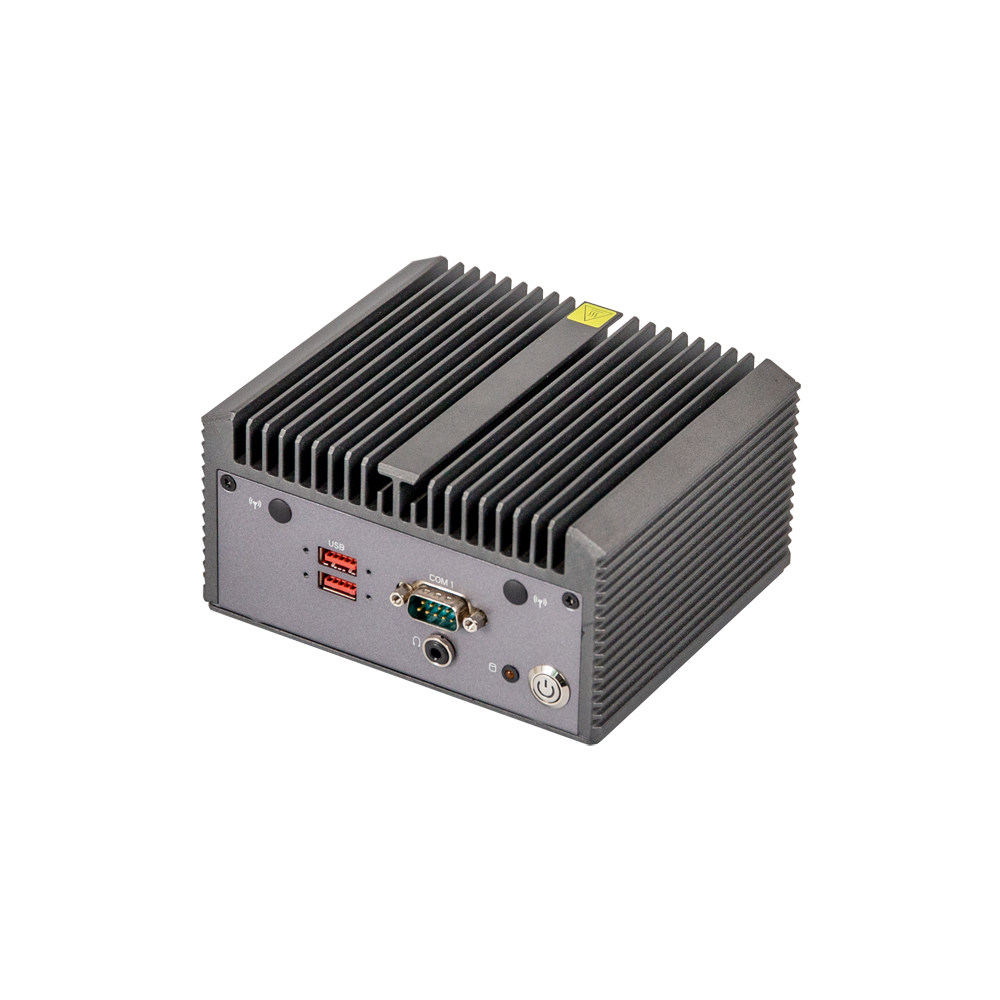

GIGAIPC QBiX-TGLA1115G4E-A1
  • QBiX-TGLA1115G4E-A1
  • Industrial system with Intel® Core™ i3-1115G4E Processor / Lockable DC Connector/ 2 x HDMI / 2 x LAN Ports
features
System Size : 138W x 118D x 74.2H (mm)
Intel® Core™ i3-1115G4E Processor
1 x COM Port (RS-232/422/485)
Dual Channel DDR4, 2 x SO-DIMMs
2 x HDMI for Dual display
2 x GbE LAN Ports
spec
Ordering Information
6BQB1115AMR-SI (Box packing)



Specification
Dimension138W x 118D x 74.2H(mm)
CPUIntel® Core™ i3-1115G4E Processor
10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz
ChipsetSoC
Memory2 x DDR4 SO-DIMM socket, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet1 x GbE LAN Port (Intel® I219V)
1 x GbE LAN Port (Realtek® RTL8111HS)
Graphic SupportIntegrated Graphics Processor - Intel® Iris® Xᵉ Graphics:
2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

(2 independent display outputs)
AudioRealtek® Audio Codec
Expansion Slots1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
Front I/O2 x USB 3.2 Gen 2x1
1 x Power Button with LED
2 x External Antenna Holes (Optional)
1 x HDD LED
1 x COM Port (RS-232/422/845)
1 x Headphone Jack
Rear I/O2 x HDMI
2 x RJ45 LAN Ports
2 x USB 3.2 Gen 2x1
1 x Screw type DC Jack
Power+9V~48VDC (Adapter 19.5V/135W)
Operation TemperatureOperating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature:-40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During OperationOperation: IEC 60068-2-64, 3 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During OperationOperation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging ContentCarton size: 416 x 409 x 296 (mm)
Packing Capacity: 6pcs

Single Box size: 258 x 191 x 130 (mm)
Single Box weight: Approx. 2.5kg

Including:
PSU ADP 19.5V 135W 100-240VAC x 1 (P/N: 25EP4-201352-C1S)
Power Cord : Optional (by region)
Wall Mount Bracket x 2 (P/N: 25HB2-CGAA20-CHR)
Order Information6BQB1115AMR-SI (Box packing)
