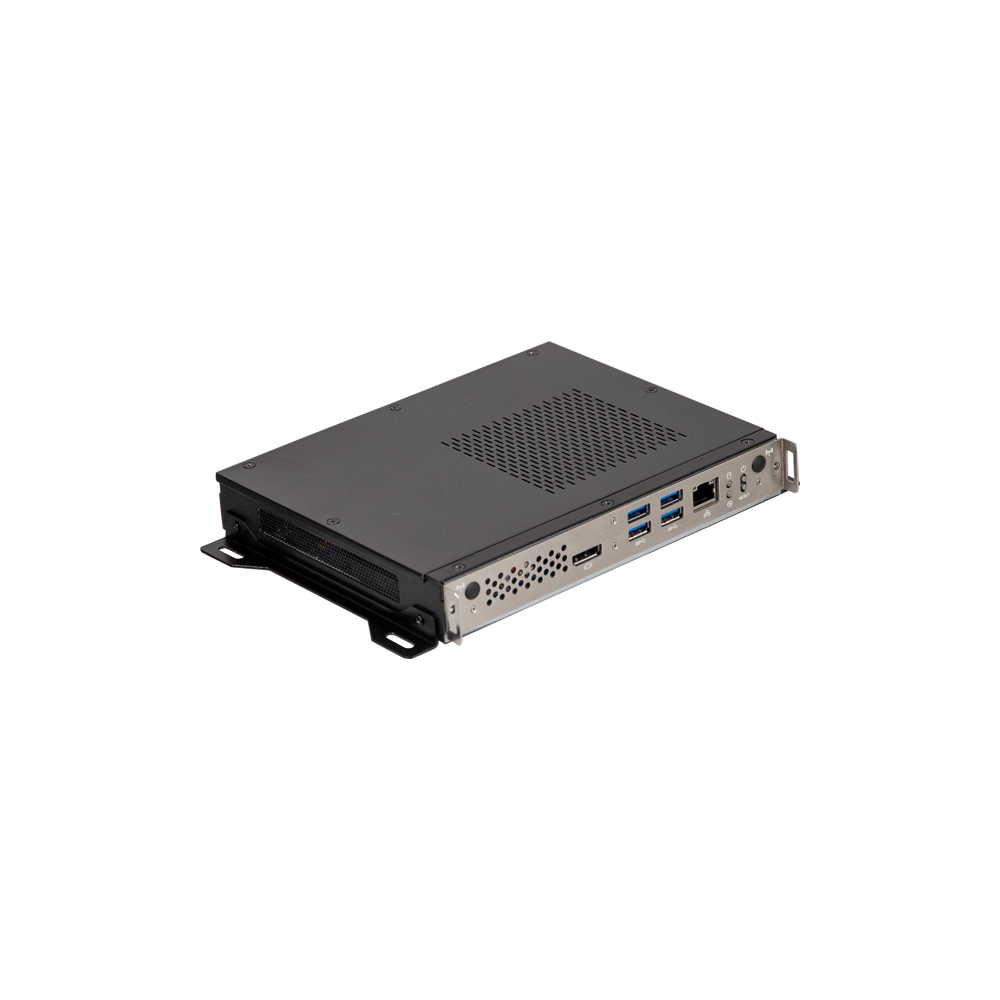

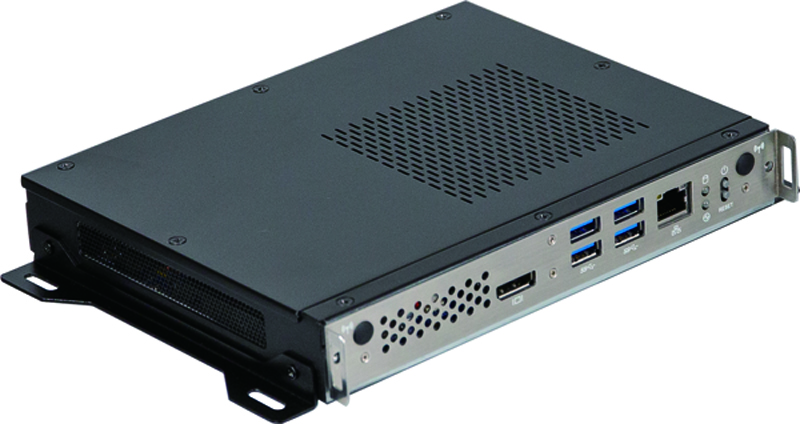

QBiX-Lite SDM Kits
  • Media Display System with Intel® Smart Display Module(Intel® SDM) Support
spec
Ordering Information
6BSD4000AMR-SI
Key Features
  • SDM Chassis Kit (Support SDM module)
  • System Size : 195W x 158D x 30H (mm)
Application
  • KIOSK
  • Digital Signage
  • Menu Board / Video Wall







    QBiX-Lite series, a media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market.

    QBiX-Lite SDM Kits is one of the product line to be integrated with our Smart Display Module series, it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel.  With powerful Intel® SDM Support, it provides 2 to 3 independent display outputs of 4K resolutions with high computing performance and stability.  Not only you can choose your preferred SDM module, but you can also upgrade and switch to a higher spec of SDM in the future without changing the whole digital signage equipment.   SAVE COST and SAVE TIME!!!

    Specification
    Dimension

    195W x 158D x 30H(mm)

    CPU

    Support SDM module as follows:

    SDM-1135G7L
    SDM-1115G4L

    SDM-7300L (with Intel vPro support)

    SDM-7100L

    SDM-4000L

    SDM-3350L-HW

    SDM-3350L-QV

    Memory

    Depends on SDM module:

    SDM-1135G7L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)
    SDM-1115G4L (2 x DDR4 SO-DIMM sockets, Dual Channel 3200 MHz memory Module, Max. Capacity 64 GB)

    SDM-7300L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB)

    SDM-7100L (2 x DDR4 SO-DIMM sockets, Dual Channel 2133 MHz memory Module, Max. Capacity 32 GB)

    SDM-4000L (2 x DDR4 SO-DIMM sockets, Dual Channel 2400 MHz memory Module, Max. Capacity 8 GB)

    SDM-3350L-HW (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB)

    SDM-3350L-QV (2 x DDR3L SO-DIMM sockets, Dual Channel 1866 MHz memory Module, Max. Capacity 8 GB)

    Ethernet

    1 x GbE LAN Port

    Graphic Support

    Depends on SDM module:

    SDM-1135G7L (3 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)
    SDM-1115G4L (3 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)

    SDM-7300L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)

    SDM-7100L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)

    SDM-4000L (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)

    SDM-3350L-HW (1 x HDMI 2.0, 1 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)

    SDM-3350L-QV (1 x HDMI 2.0, 2 x Display Port, supporting a maximum resolution of 4096x2160 @60Hz)

    Audio

    Intel® Integrated Audio

    Storage

    Depends on SDM module:

    SDM-1135G7L (--)
    SDM-1115G4L (--)

    SDM-7300L (--)

    SDM-7100L (--)

    SDM-4000L (1 x eMMC 32GB)

    SDM-3350L-HW (1 x eMMC 32GB)

    SDM-3350L-QV (1 x eMMC 32GB)

    Expansion Slots

    1 x 2280 M.2 M-Key (SATA 6Gb/s)

    1 x 2230 M.2 E-key (WiFi/BT)

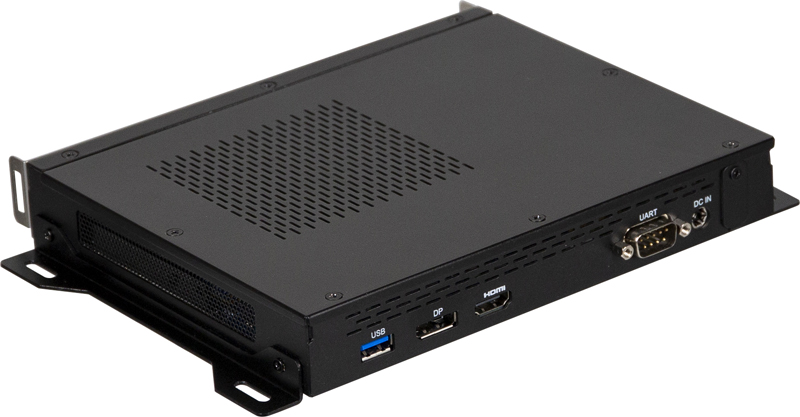

    Front I/ODepends on SDM module
    Rear I/O1 x USB 3.2 Gen 1
    1 x Display Port (Co-lay with front Display Port)
    1 x HDMI
    1 x UART
    1 x DC-Jack
    1 x 2x2 Power connector
    Power+12V/+19V/+24VDC (Adapter 19V/65W)
    (Adapter 19V/90W for SDM-1135G7L, SDM-1115G4L)
    Operation Temperature

    Operating temperature: 0°C to 50°C

    Operating humidity: 0-90% (non-condensing)

    Non-operating temperature: -20°C to 70°C

    Non-operating humidity: 0%-95% (non-condensing)

    Use wide temperature range memory and storage

    Vibration During Operation

    Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242

    Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis

    Shock During Operation

    Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD

    Packaging ContentCarton size: 469 x 382 x 381 (mm)
    Packing Capacity: 10pcs

    Single Box size: 345 x 221 x 70 (mm)

    Including:
    Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
    PSU ADP 19V 65W 100-240VAC x 1 : 25EP2-10065Q-A3S or
    PSU ADP 19V 90W 100-240VAC x 1 : 25EP4-10090D-F3S (for SDM-1135G7L, SDM-1115G4L)
    Power Cord : Optional (by region)
    Order Information

    6BSD4000AMR-SI
