- System Size : 234W x 155D x 30H (mm)
- AMD RYZEN™ V1605B Embedded Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 4 x HDMI 2.0 for multiple displays
- 2 x GbE LAN Ports
- KIOSK / POS
- Digital Signage
- Menu Board / Video Wall

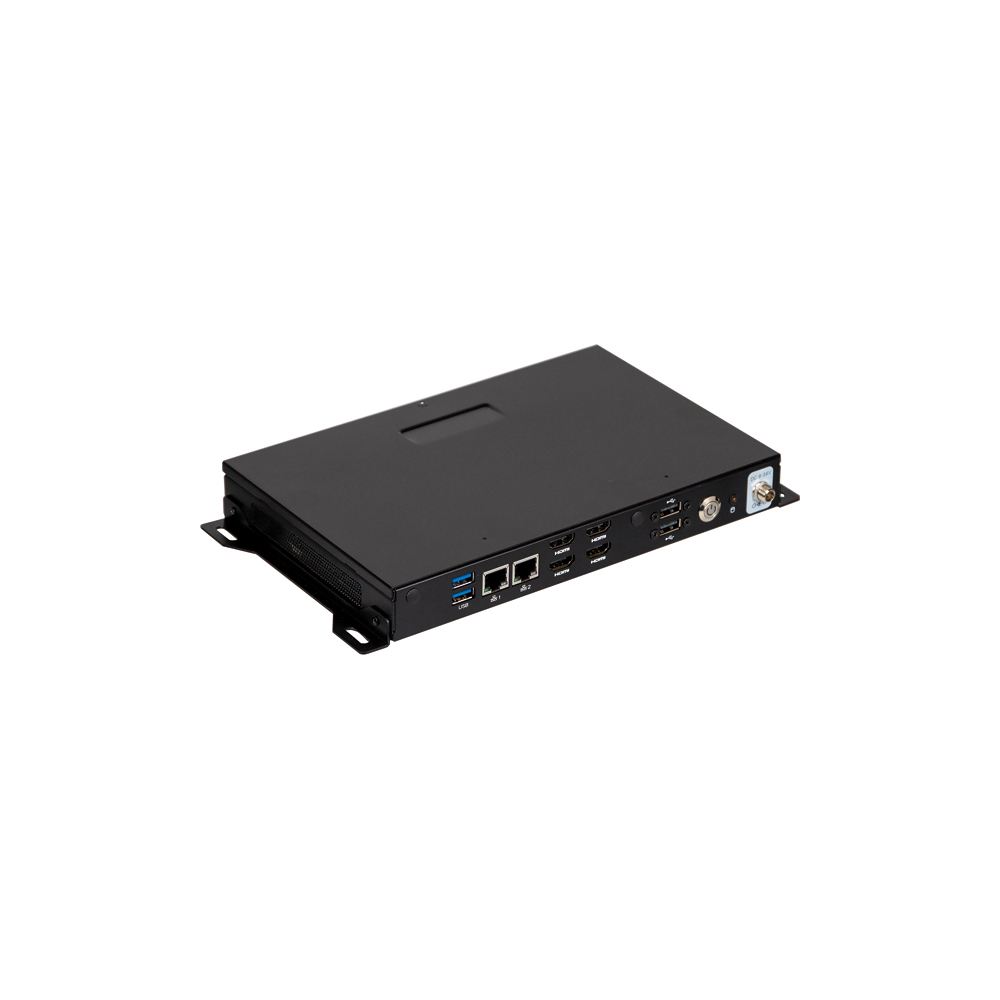

QBiX-Lite series, a media display system kit, is designed for easy installation, upgrade and maintenance for large scale of digital signage applications in retail market.
QBiX-Lite-AMDA1605H-A1 is one of the product line to be integrated with GIGAIPC 3.5" SBC (QBiP-1605B), it's only 30mm in hight and extra light in weight to fit it any space-limited environment, or mount it on the back of display panel vertically or horizontally, based on your product design. With powerful AMD Ryzen™ V1605B Embedded Processor, it provides up to 4 independent display outputs of 4K resolutions with high computing performance and stability. It features with onboard TPM2.0 chip for system security protection and supports a wide range of operating temperature from 0°C to 50°C with industrial fan-less thermal solution and therefore reduces the risk of fan failure.
SpecificationDimension 234W x 155D x 30H (mm)
CPU AMD Ryzen™ V1605B Embedded Processor
14nm, 4 cores, 8 threads, up to 3.6 GHz
TDP 25W
2MB of shared L2 plus 4MB of shared L3 total
Chipset SoC
Memory 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB
Support Dual channel DDR4 2400 MHz memory modules
Ethernet 2 x GbE LAN Ports (Realtek® RTL8111HS)
Graphic Support Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:
4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz
*Support EDID emulation with AMD graphic driver/utility(4 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x 2.5" HDD/SSD (SATA 6 Gb/s)
Expansion Slots 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)
1 x 2230 M.2 E-Key (WiFi/BT)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module

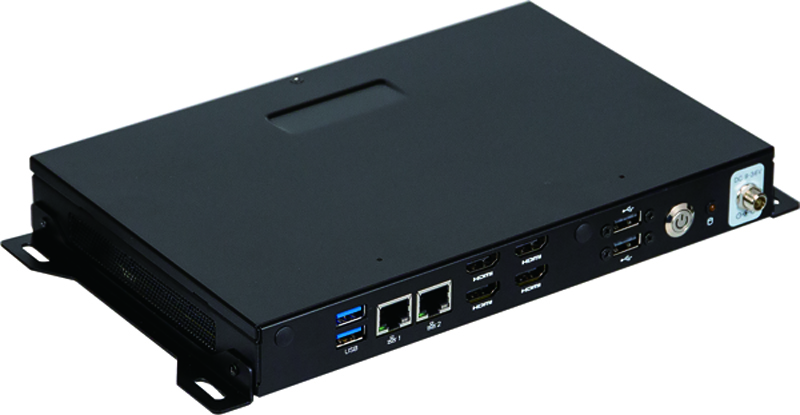

Front I/O 2 x RJ45 LAN Ports
2 x USB 3.2 Gen 1
2 x USB 2.0
4 x HDMI
1 x Power button with LED
1 x HDD LED
1 x Screw type DC Jack
Rear I/O 1 x COM Port (RS-232/422/485 & RI/5V/12V)
2 x USB 2.0
1 x Line out phone jack
2 x External Antenna Holes (Optional)
TPM Onboard TPM 2.0 security chip
INFINEON SLB9665TT2.0
Power +9V~36VDC (Adapter 19V/65W) Operation Temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content Carton size: 481 x 300 x 375 (mm)
Packing Capacity: 5pcs
Single Box size: 336 x 279 x 90 (mm)
Including:
Bracket for Wall Mount x 2 : 25HB1-SD4000-R0R
PSU ADP 19V 65W 100-240VAC x 1 : 25EP1-100650-A3S
Power Cord : Optional (by region)Mounting Wall mount (Default)
VESA 75/100 (Optional)
Order Information 6BQL1605AMR-SI (Box packing)
