- System Size: 178W x 125D x 52.7H(mm)
- Intel® Celeron® J1900 Processor
- Single Channel DDR3L, 1 x SO-DIMM
- HDMI, D-sub for Dual display
- 2 x GbE LAN Ports
- Embedded & Industrial Applications
- IoT System
- Factory Automation
- KIOSK / POS
- Healthcare
QBiX Pro Series of GIGAIPC embedded system is implemented with GIGAIPC QBi Pro (3.5" SubCompact Board). Its fan-less design reduces the risk of fan failure and maintainance efforts. The aluminium heatsink and ruggedized chassis enhanced the ability to work in harsh environment. The Compact size can easily be designed in any applications in limited space, such as factory automation, industrial controller / Surveillance systems and IoT Gateway. Furthermore, it can be a computing solution dedicated to thin client, POS, KIOSK for commercial market.
QBiX-Pro-BYTA1900H-A1 is powered by Intel® Celeron® J1900 processor, to provide "low power but high performance" for energy-saving requests. It is designed with full range 9-36V DC power inputs for operating temperature of 0°C~50°C and rich I/O interfaces and expansion M.2 slots to fit in various applications. The system supports 2.5" HDD/SSD (SATA 3Gb/s) with vibration resistance of 5 Grms/5~500Hz and shock endurance to 50G/11ms, to meet industrial standard.
SpecificationDimension 178W x 125D x 52.7H(mm)
CPU Intel® Celeron® J1900 Processor
22nm, 4 cores, 4 threads, up to 2.42 GHz
TDP 10W
2MB L2 cache
Chipset SoC
Memory 1 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB
Support Single Channel DDR3L 1333MHz memory module
Ethernet 2 x GbE LAN Ports (Intel® I211AT)
Graphic Support Integrated Graphics Processor - Intel® HD Graphics:
1 x HDMI 1.4 port, supporting a maximum resolution of 1920x1200 @60Hz
1 x VGA port, supporting a maximum resolution of 2560x1600 @60Hz (with compatible displays)
(2 independent display outputs)
Audio Realtek® Audio Codec
Storage 1 x 2.5” HDD/SSD (SATA 3Gb/s)
Expansion Slots 1 x 2280 M.2 M-Key (SATA 3Gb/s)
1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module

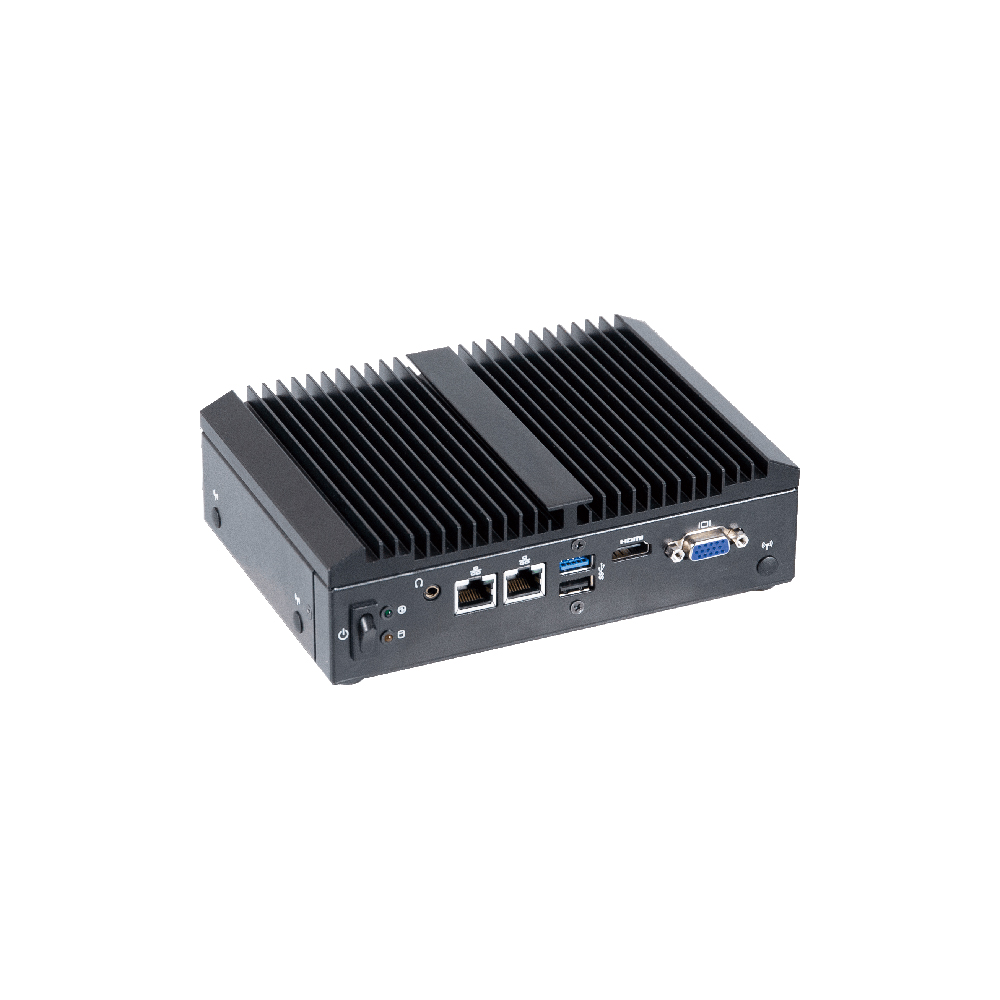

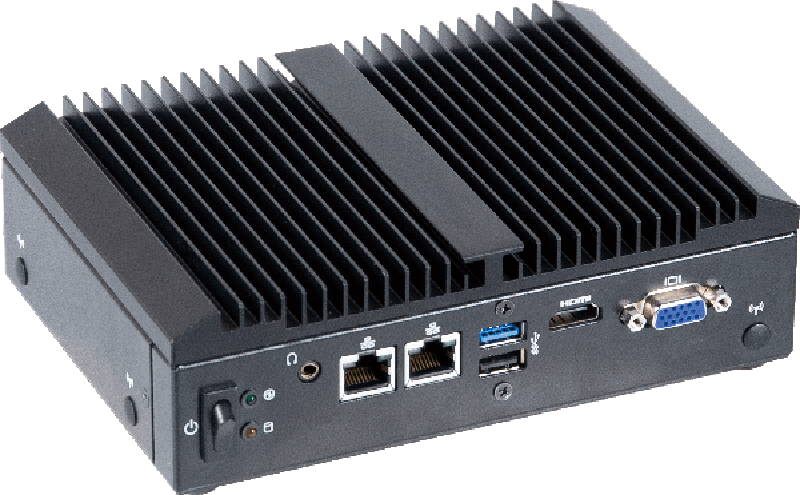

Front I/O 2 x RJ45 LAN Ports
1 x USB 3.2 Gen 1
1 x USB 2.0
1 x HDMI
1 x VGA
1 x Power switch
1 x Power & HDD LED
1 x Headphone Jack

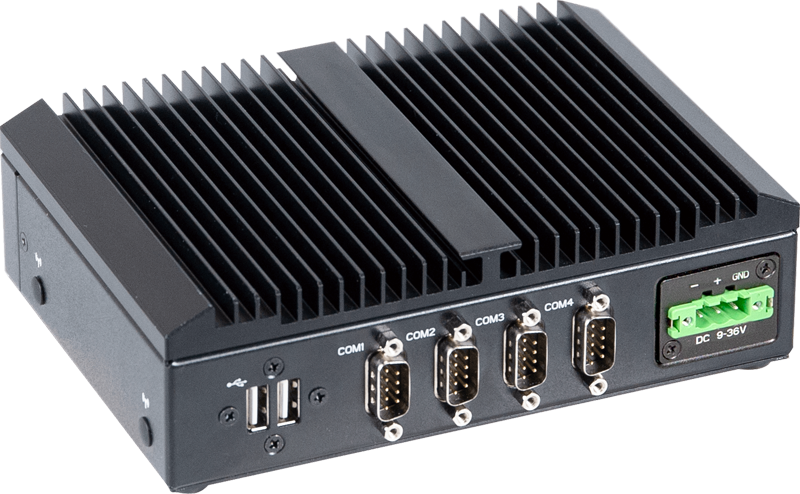

Rear I/O 2 x USB 2.0
2 x COM Ports (RS-232)
1 x COM Port (RS-232/422/485)
1 x COM Port (RS-232/422/485 & RI/5V/12V)
1 x 3-pin Terminal Block
Side I/O 2 x External Antenna Holes (Optional)
Power +9V~36VDC (Full Range)
Operation Temperature Operating temperature: 0°C to 50°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -20°C to 70°C
Non-operating humidity: 0%-95% (non-condensing)
Use wide temperature range memory and storage
Vibration During Operation Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD/M.2 2242
Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis
Shock During Operation Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD
Packaging Content Carton size: 505 x 333 x 231 (mm)
Packing Capacity: 5pcs
Single Box size: 313 x 191 x 95 (mm)
Including:
Screw I Head for 2.5" HDD M3x8L x 4 (P/N: 25KSG-130081-K1R)
Thermal Pad x 2 (P/N: 25ST3-200052-T5R)
SATA Cable x 1 (P/N: 25CF4-170020-S9R)
Terminal Blocks Male Plug x 1 (P/N: 25IO0-5ESDV0-D2R)Mounting Wall mount (Optional)
Order Information 6BQP1900AMR-SI (Box packing)
Optional Kit TPM 2.0 module P/N: 9CTM000NR-00
TPM Cable P/N: 25CRZ-100600-S9R
