- System Size : 118W x 109.4D x 44.4H (mm)
- Intel® Celeron® J4125 Processor
- 1 x COM Port (RS-232)
- Single Channel DDR4, 1 x SO-DIMM
- 2 x HDMI for Dual display
- 2 x GbE LAN Ports
- Factory Automation
- Industrial PC
- KIOSK/POS
- Embedded & Industrial Applications
- IoT system
QBiX Series of GIGAIPC embedded system is implemented with GIGAIPC QBi (10x10 Motherboards). It's designed as palm-sized, fan-less and ruggedized computing solution dedicated to thin client, POS, KIOSK, smart factory automation, industrial controller system and space-limited applications, with VESA mout 75x75 and 100x100 for options.
QBiX-GLKB4125-A1 is powered by Intel® Celeron® J4125 Processor to provide "low power but high performance" feature. It is designed with full range 12V-19V DC power inputs for operating temperature of 0°C~50°C. The system supports is available with rich features of HDMI output, 4 x USB 3.2 Gen 1 Port to work with different peripherals of devices, and 1 x M.2 2280 M-Key (SATA 6GB/S) & 1 x M.2 2230 E-Key for expansion.
Specification
| Dimension | 118W x 109.4D x 44.4H(mm) |
| CPU | Intel® Celeron® J4125 Processor 14nm, 4 cores, 4 threads, up to 2.7 GHz TDP 10W 4MB Cache |
| Chipset | SoC |
| Memory | 1 x DDR4 SO-DIMM socket, Max. Capacity 8 GB Support Single Channel DDR4 2400 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I211AT and Realtek® RTL8111HS) |
| Graphic Support | Integrated Graphics Processor - Intel® UHD Graphics 600: 2 x HDMI 1.4b port, supporting a maximum resolution of 4096x2160 @30Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots | 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |

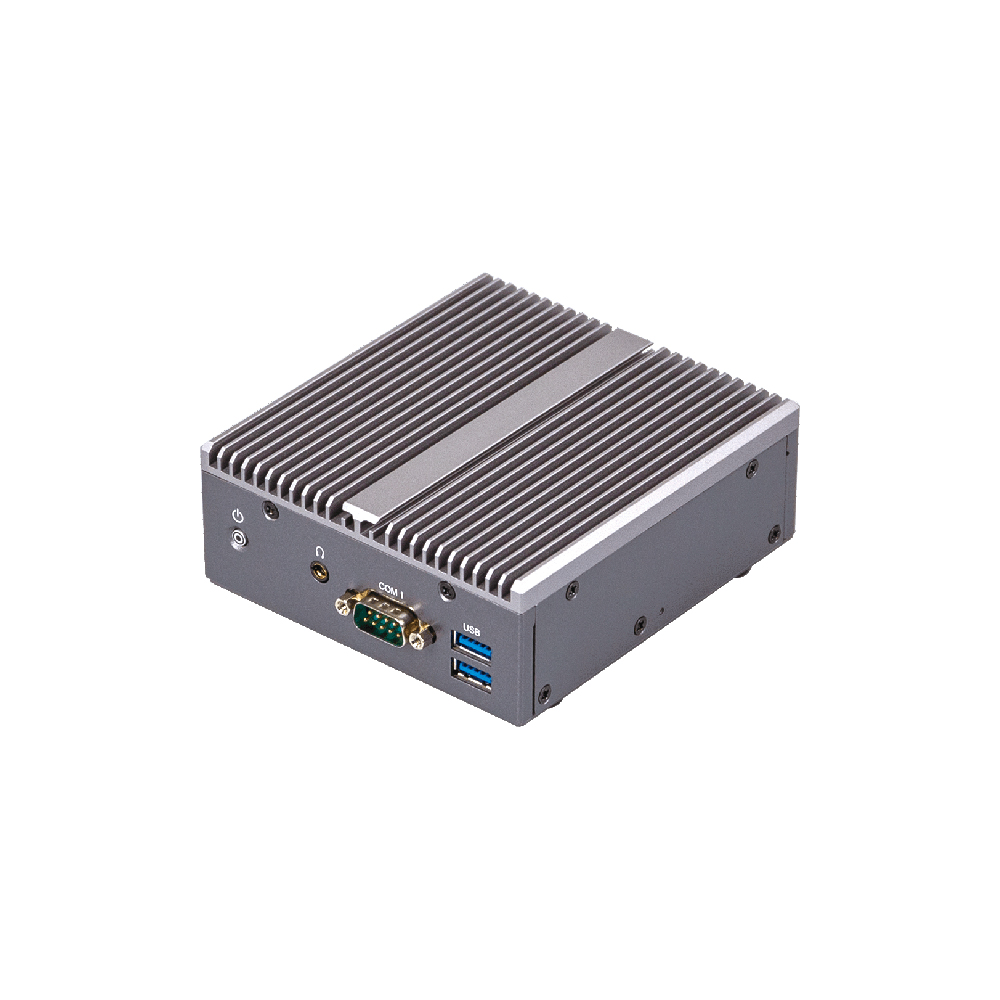

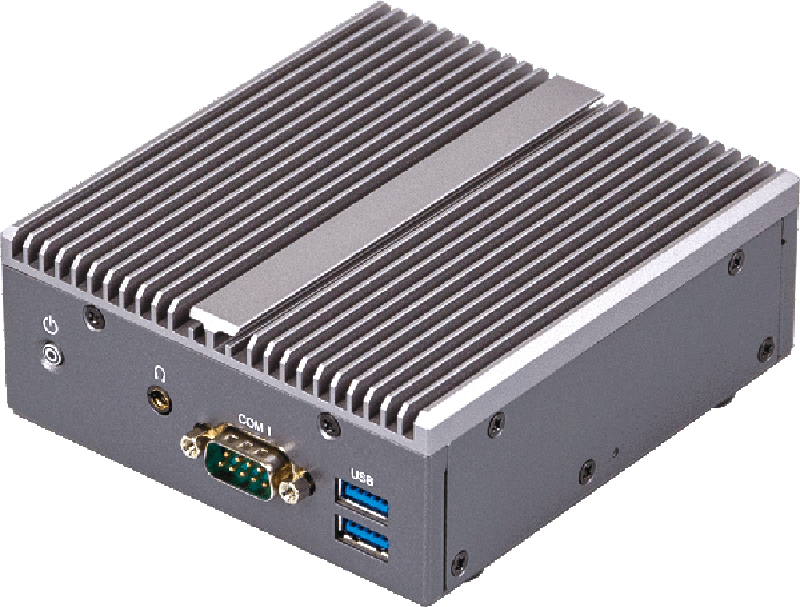

| Front I/O | 2 x USB 3.2 Gen 1 1 x COM Port (RS-232) 1 x Headphone Jack 1 x Power button with LED |

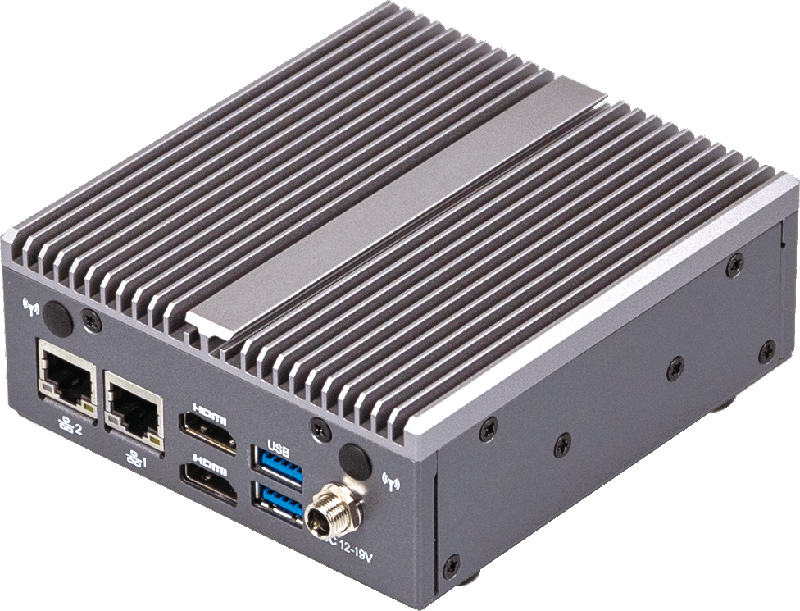

| Rear I/O | 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 2 x HDMI 2 x External Antenna Holes (Optional) 1 x Screw Type DC Jack |
| Power | +12V~19VDC (Adapter 19V/65W) |
| Operation Temperature | Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) Use wide temperature range memory and storage |
| Vibration During Operation | Operation: IEC 60068-2-64, 5 Grms, random, 5 ~ 500 Hz, 1 hr / Per Axis, With SSD Non-operation: IEC 60068-2-6, 2 G, Sine, 10 ~ 500 Hz, 1 Oct/min, 1 hr / Per Axis |
| Shock During Operation | Operation: IEC 60068-2-27, 50 G, half sine, 11 ms duration, With SSD |
| Packaging Content | Carton size: 416 x 409 x 296 (mm) Packing Capacity: 6pcs Single Box size: 258 x 191 x 130 (mm) Single Box weight: Approx. 1.5kg Including: Power Cord 3Cx18AWG SVT US x 1 (P/N: 25CP0-007001-Q0R) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065L-F3S) VESA_RS_BKT_KP x 1 (P/N: 25HB1-TPL021-S8R) VESA-SCREW-ASM x 1 (P/N: 25KSD-000001-S4R) |
| Order Information | 6BQB4125AMR-SI (Box packing) |
| Optional Kit | WiFi module (Intel 3168AC) : 25FC7-3168N0-10R Internal Antenna (300mm) : 25CA0-300003-A5S Internal Antenna (230mm) : 25CA0-230003-A5S WiFi/BT Antenna x 2 : 25CA0-111000-A5S |
