Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
Specification

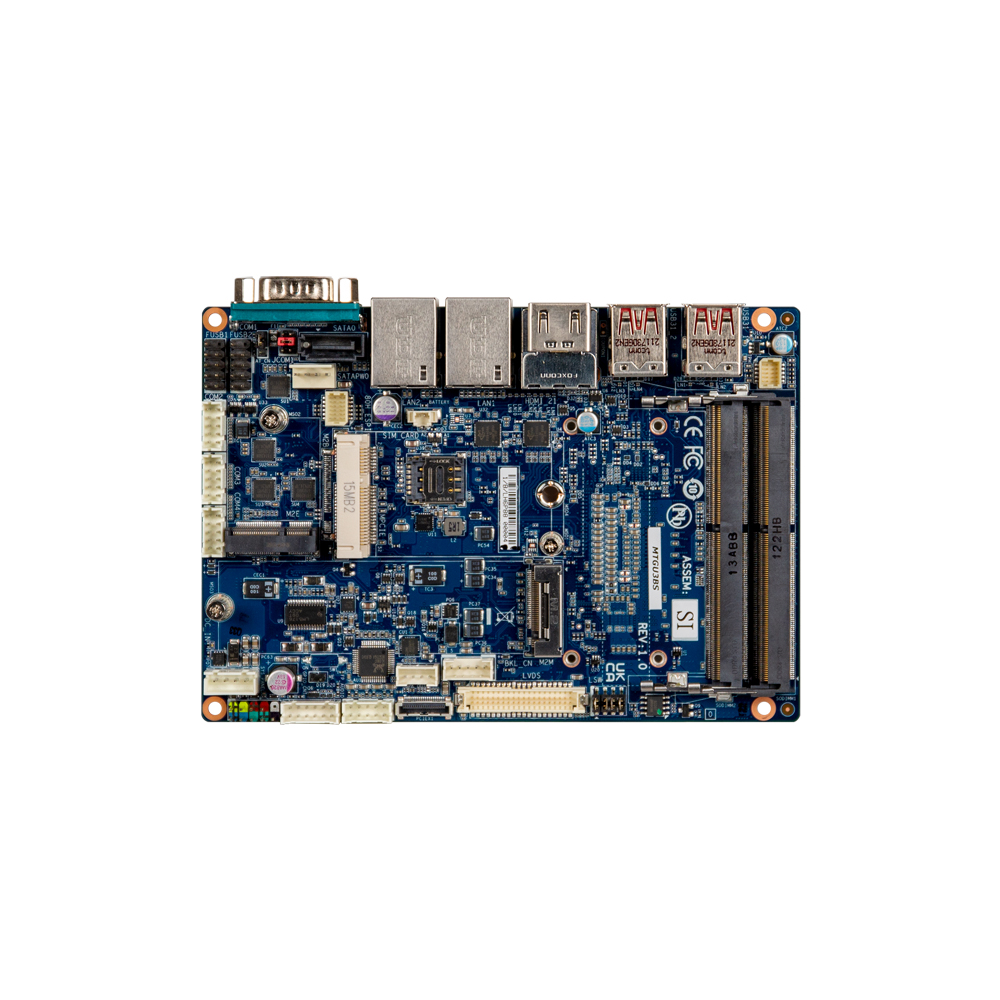

| Form Factor | 3.5" SBC 146W x 101.7D(mm) |
| CPU | Intel® Core™ i7-1185G7E Processor 10nm SuperFin, 4 cores, 8 threads, up to 4.4 GHz vPro support, TDP 28W 12 MB Smart Cache |
| Socket | 1 x FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I219LM and Intel® I211AT) |
| Video | Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x SATA 6Gb/s Port (SATA RAID 0/1) |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x2, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size Mini PCIe with SIM slot 1 x PCIe x1 (Board to Wire connector, PCIe Gen3 x1) |
| Internal I/O | 1 x 4-pin box power connector (DC in +9V~48VDC) 1 x SATA Power header 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232/422/485) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x SPI header |
| Rear I/O | 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x HDMI 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 2x1 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: -20°C to 70°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 375 x 324 x 293 (mm) Packing Capacity: 10pcs Single Box size: 256 x 175 x 59 (mm) Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Fanless sink x 1 (P/N: 25ST1-1Z3101-AFR) |
| Order Information | 9MTGU7DSMR-SI1 (Box Packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM010NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
