Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
spec
Ordering Information
9MTGU3AHMR-SI (Box packing)
Specification

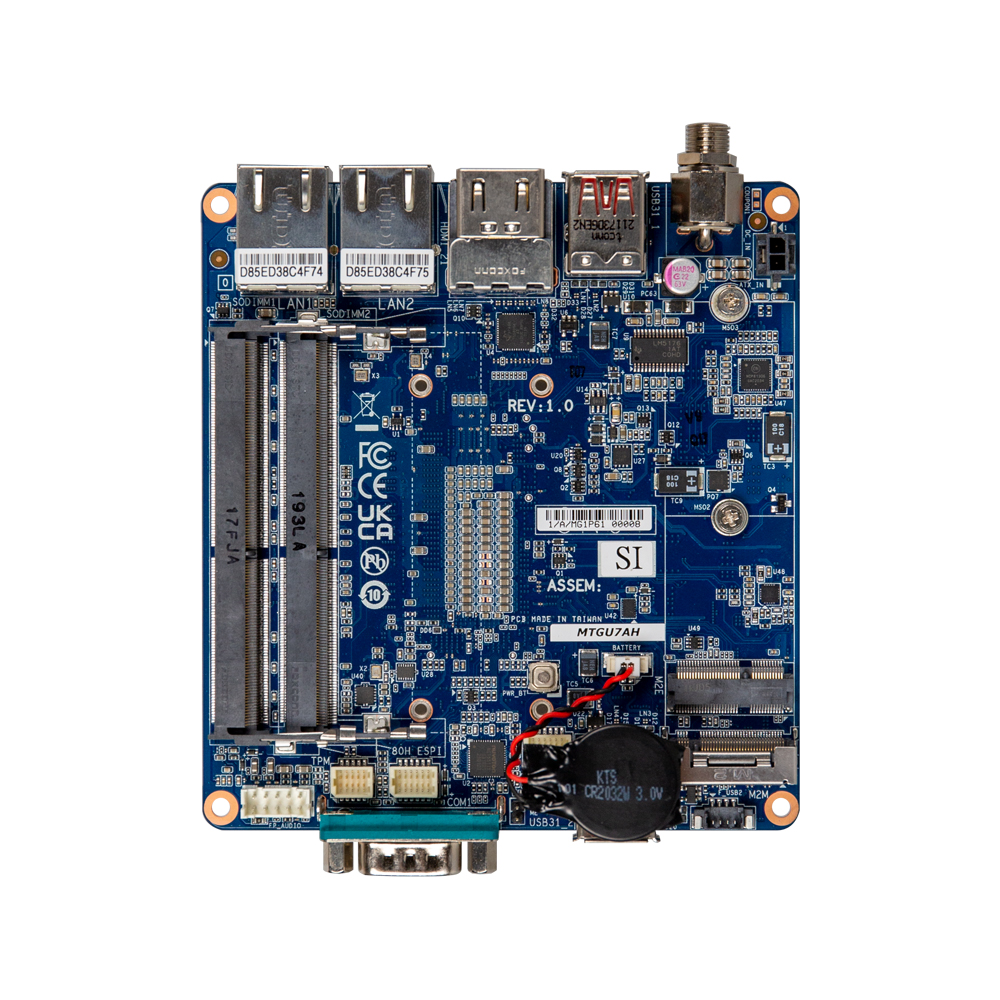

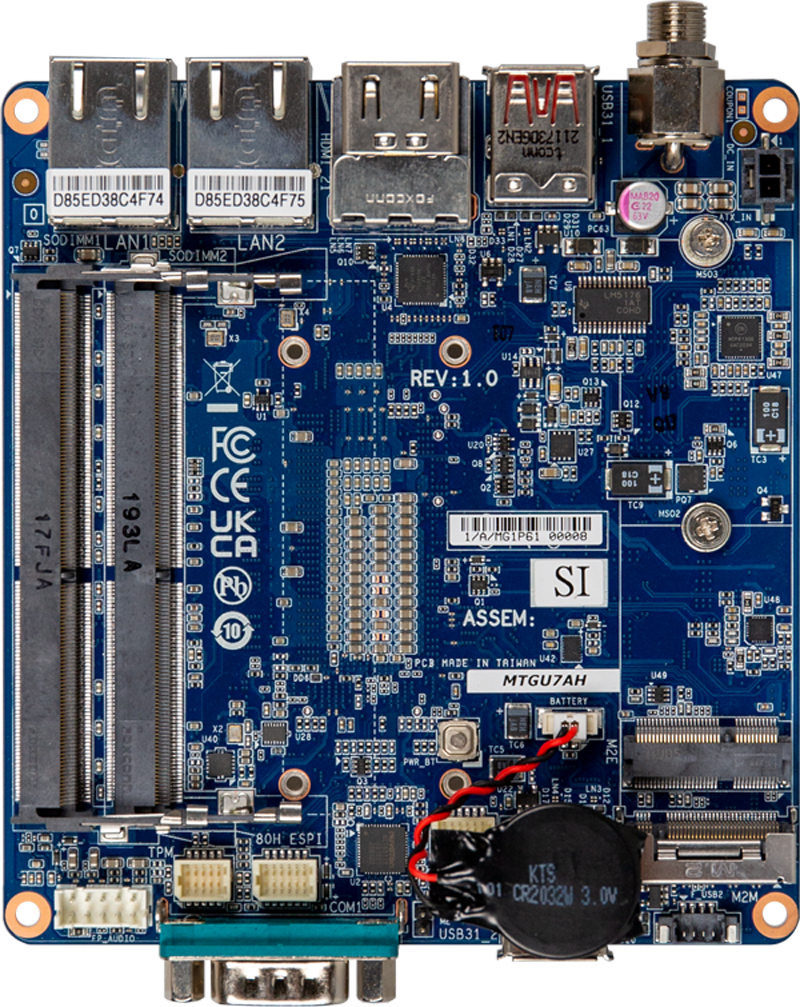

| Form Factor | Embedded Compact Board 105W x 110D(mm) |

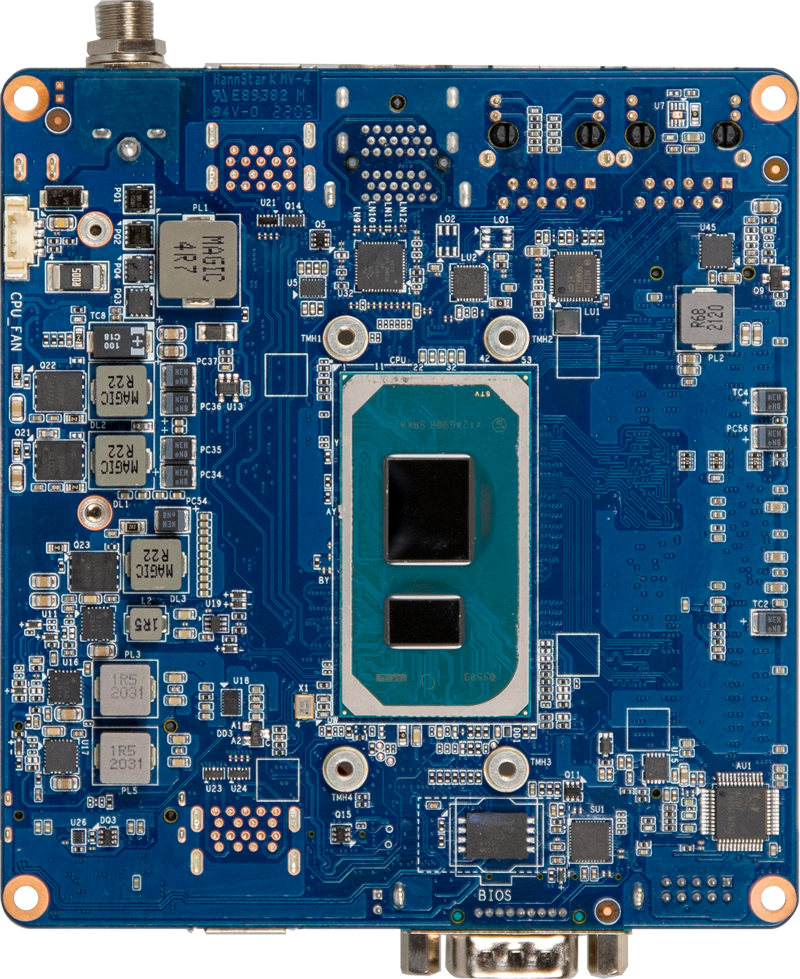

| CPU | Intel® Core™ i3-1115G4E Processor 10nm SuperFin, 2 cores, 4 threads, up to 3.90 GHz TDP 28W |
| Socket | 1 x FCBGA1449 |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual Channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I219V and Realtek® RTL8111HS) |
| Video | Integrated Graphics Processor - Intel® Iris® Xᵉ Graphics: 2 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2304 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | — |
| Expansion Slots | 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 2-pin power connector 1 x CPU fan header 1 x Front panel header 1 x Front panel audio header 1 x USB 2.0 header |

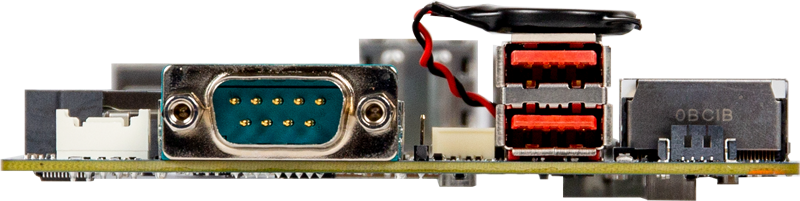

| Front I/O | 2 x USB 3.2 Gen 2x1 1 x Power button 1 x COM Port (RS-232/422/485) |

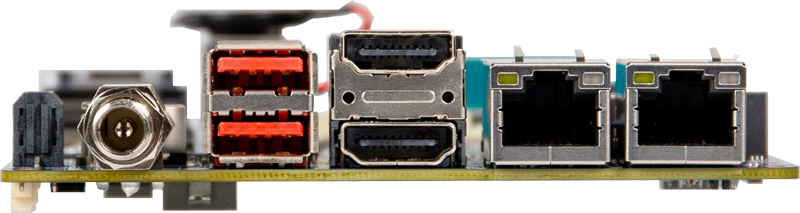

| Rear I/O | 2 x HDMI 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 1 x Screw Type DC Jack (+9V~48VDC) |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) |
| Order Information | 9MTGU3AHMR-SI (Box packing) |
| Optional Kit | Fansink P/N: 25ST4-113101-A7R TPM 2.0 module P/N: 9CTM010NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
Key Features
- Embedded IPC Motherboard
- Intel® Core™ i3-1115G4E Processor
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x GbE LAN Ports
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- 2 x HDMI Ports
- 1 x COM Port (RS-232/422/485)
