Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
Key Features
- Micro ATX form factor
- Support 11th/10th Generation Intel® Xeon® W-1200 series/ Core™ i3/ Pentium® & Celeron® Processors
- Intel® W480E Express Chipset
- Dual Channel DDR4, 4 x DIMMs
- 4 x GbE LAN Ports
- 6 x SATA 6Gb/s Ports
- Ultra-Fast M.2 with PCIe Gen3 x4 interface
- HDMI 1.4, Display port, D-sub, LVDS for multiple displays
- Realtek® Audio Codec
- Up to 4 x PCIe Gen3 expansion slots
- 16 x USB Ports
- 1 x COM header (RS-232/422/485 & RI/5V/12V)
- 1 x COM header (RS-232 & RI/5V/12V)
- 2 x COM headers (RS-232)

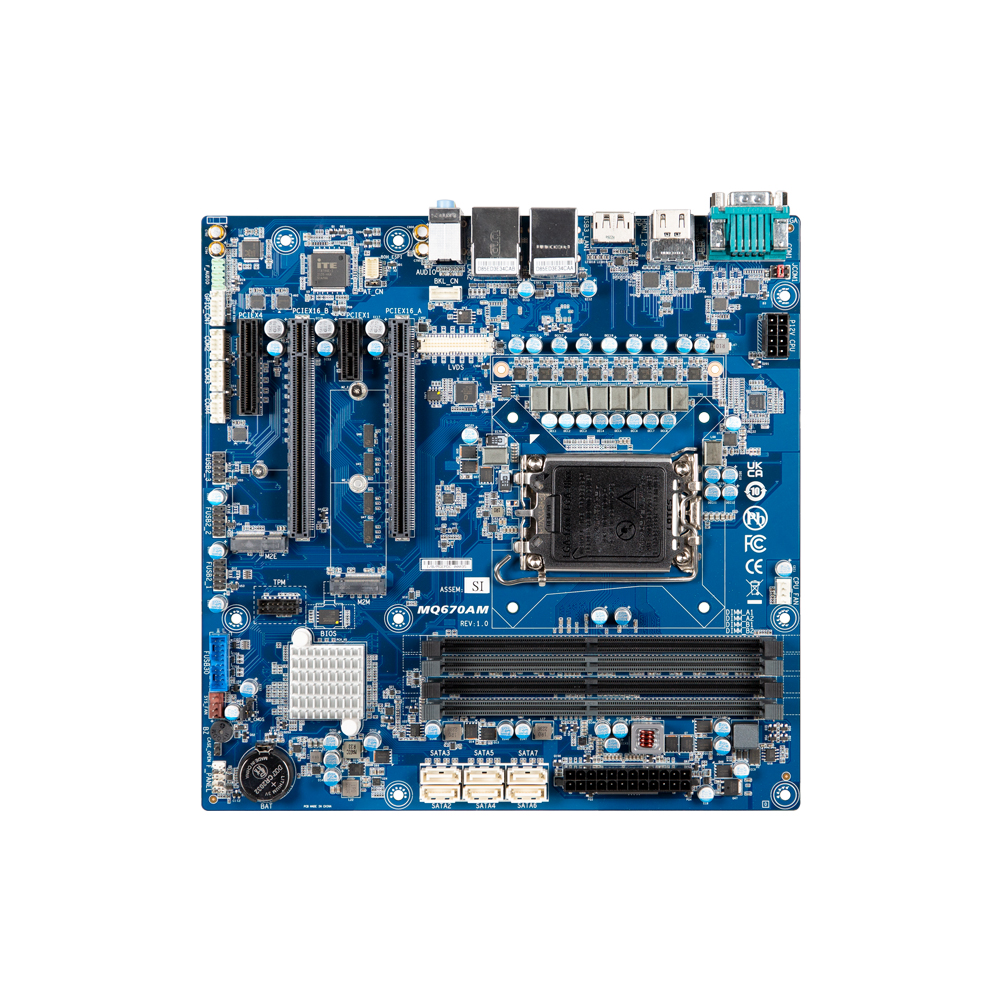

Specification| Form Factor | Micro ATX 244W x 244D(mm) |
| CPU | Support for 13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® & Celeron® processors in the LGA1700 package TDP under 125W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® Q670 Chipset |
| Memory | 4 x DDR4 DIMM sockets, Max. Capacity 128 GB Support Dual channel DDR4 3200 MHz memory modules |
| Ethernet | 1 x GbE LAN Port (Intel® I219LM) 1 x 2.5GbE LAN Port (Intel® I226V) |
| Video | Integrated Graphics Processor - depends on CPU: 2 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (4 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 6 x SATA 6Gb/s Ports |
| RAID | RAID 0/1/5/10 |
| Expansion Slots | 1 x PCIe x16 (Gen 4x16)(PCIEX16_A) * The PCIEX16_A slot shares bandwidth with the PCIEX16_B slot. * The PCIEX16_A slot operates at up to x8 mode when a device is installed in the PCIEX16_B slot. 1 x PCIe x16 (Gen 4x8)(PCIEX16_B) 1 x PCIe x1 (Gen 3x1) 1 x PCIe x4 (Gen 3x4) 1 x 2280/2242 M.2 M-Key (PCIe Gen 4x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x Case open header 6 x USB 2.0 headers 2 x USB 3.2 Gen 1 headers 3 x COM headers (RS-232) 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header 1 x Clear CMOS jumper 1 x Buzzer 1 x AT/ATX mode select jumper |
| Rear I/O | 3 x Audio Jacks (Line in, Line out, Mic in) 2 x HDMI 1 x Display Port 1 x VGA 1 x COM Port (RS-232/422/485 & RI/5V/12V) 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 2x1 2 x USB 3.2 Gen 1 |
| TPM | 1 x TPM header (SPI) |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 360 x 354 x 390 (mm) Packing Capacity: 5pcs Single Box size: 350 x 330 x 65 (mm) Single Box weight: Approx. 0.65kg Including: IO Shield x 1 (P/N: 12AIO-MQ67EA-00R) SATA Cable x 2 (P/N: 12CF1-2SAT1B-01R) |
| Order Information | 9MQ670AMMR-SI (Box packing) |
| Optional Kit | CPU Cooler : 12SF1-SK1700-01R (For CPU TDP 125W, Push-pin type) CPU Cooler : 25ST0-037820-Y0R (For CPU TDP 65W) CPU Cooler Backplate : 12KRH-0A1700-00R (Used with P/N: 25ST0-037820-Y0R) TPM 2.0 module : 9CTM010NR-00 VR Heatsink : 12SP2-090027-00R (Suggest to be used if CPU real power is over 100W) |
