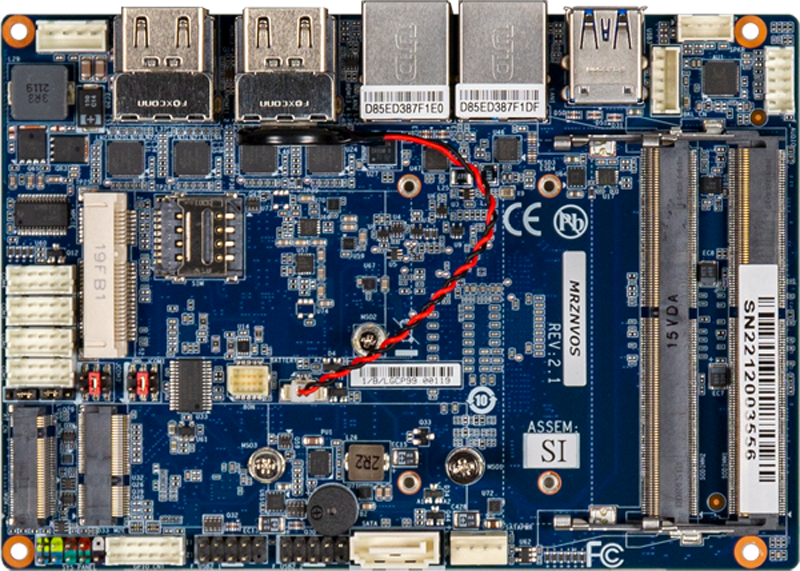

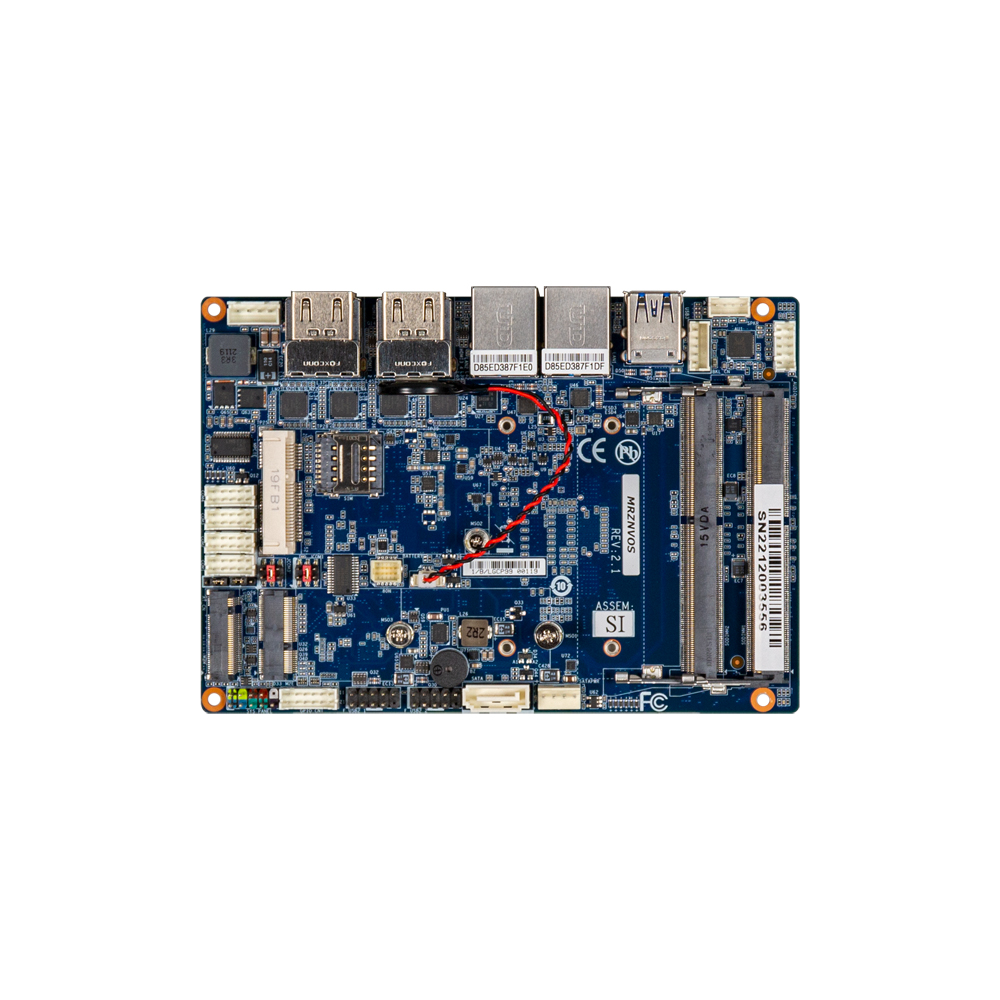

3.5" SBC

146W x 101.7D(mm)

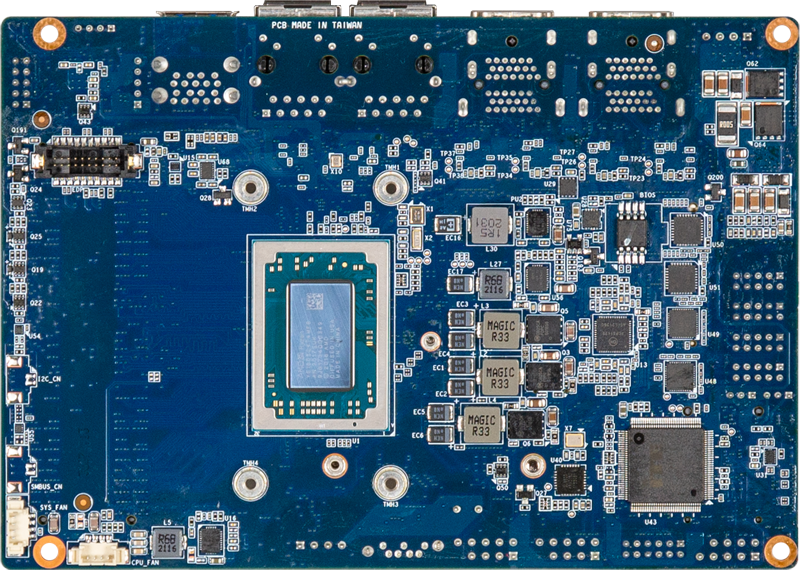

AMD Ryzen™ V1605B Embedded Processor

14nm, 4 cores, 8 threads, 2.0 GHz, up to 3.6 GHz

TDP 25W

2MB of shared L2 plus 4MB of shared L3 total

1 x FP5 type 1 BGA

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

Support Dual channel DDR4 2400/2133 MHz memory modules

2 x GbE LAN Ports (Realtek RTL8111HS)

Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics:

4 x HDMI 2.0 ports, supporting a maximum resolution of 4096x2160 @60Hz

1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz (Share from HDMI)

(4 independent display outputs)

Realtek® Audio Codec

1 x SATA 6Gb/s Port

1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s)

1 x 2230 M.2 E-Key

1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G module

1 x 4-pin box power connector (DC in +9V~36VDC)

1 x SATA Power header

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Front panel audio header

1 x 2W Speaker out header

4 x USB 2.0 headers

2 x COM headers (RS-232)

2 x COM headers (RS-232/422/485 & RI/5V/12V)

1 x Backlight Control header

1 x AT/ATX mode select jumper

1 x eDP/HDMI jumper

1 x GPIO (8-bits) & SMBUS header

1 x Buzzer

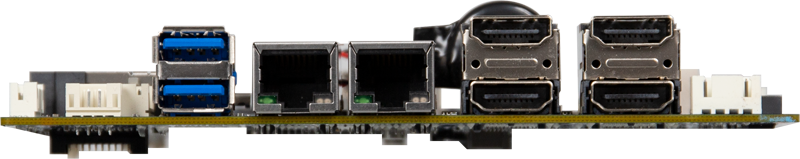

4 x HDMI

2 x RJ45 LAN Ports

2 x USB 3.2 Gen 1

Onboard TPM 2.0 security chip

INFINEON SLB9665TT2.0

Windows 10 (x64)

Operating temperature: 0°C to 60°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to +85°C

Non-operating humidity: 0%-95% (non-condensing)

9MRZNVOSMR-SI (Box Packing)

Fanless Heatsink P/N:25ST1-113104-A7R

Fansink P/N: 12SF2-01A073-00R

Heat spreader P/N: 25ST5-QP1600-A8R
