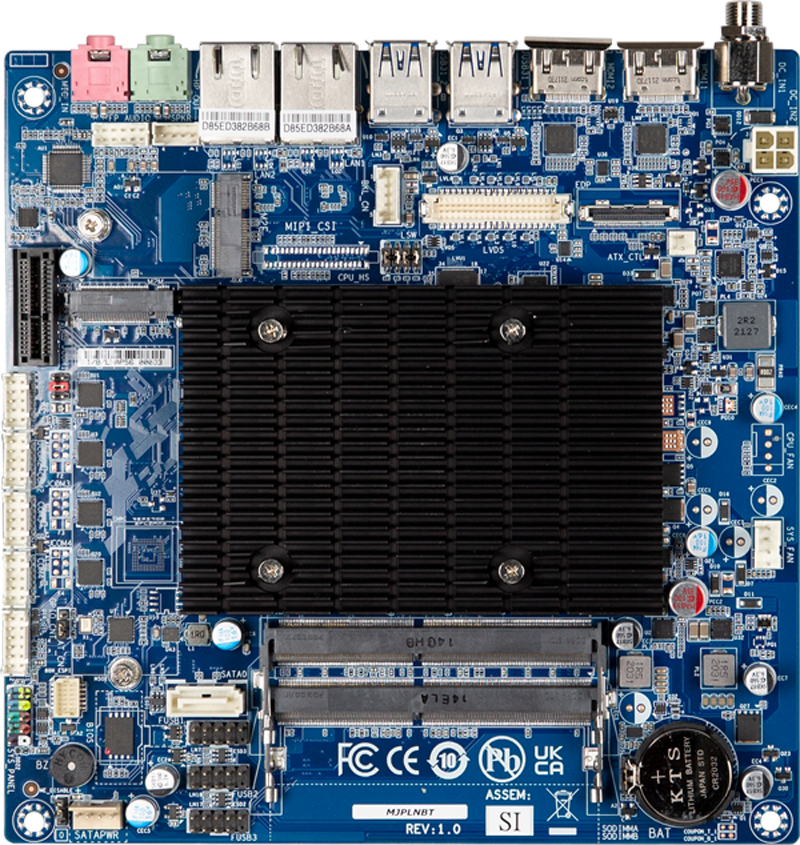

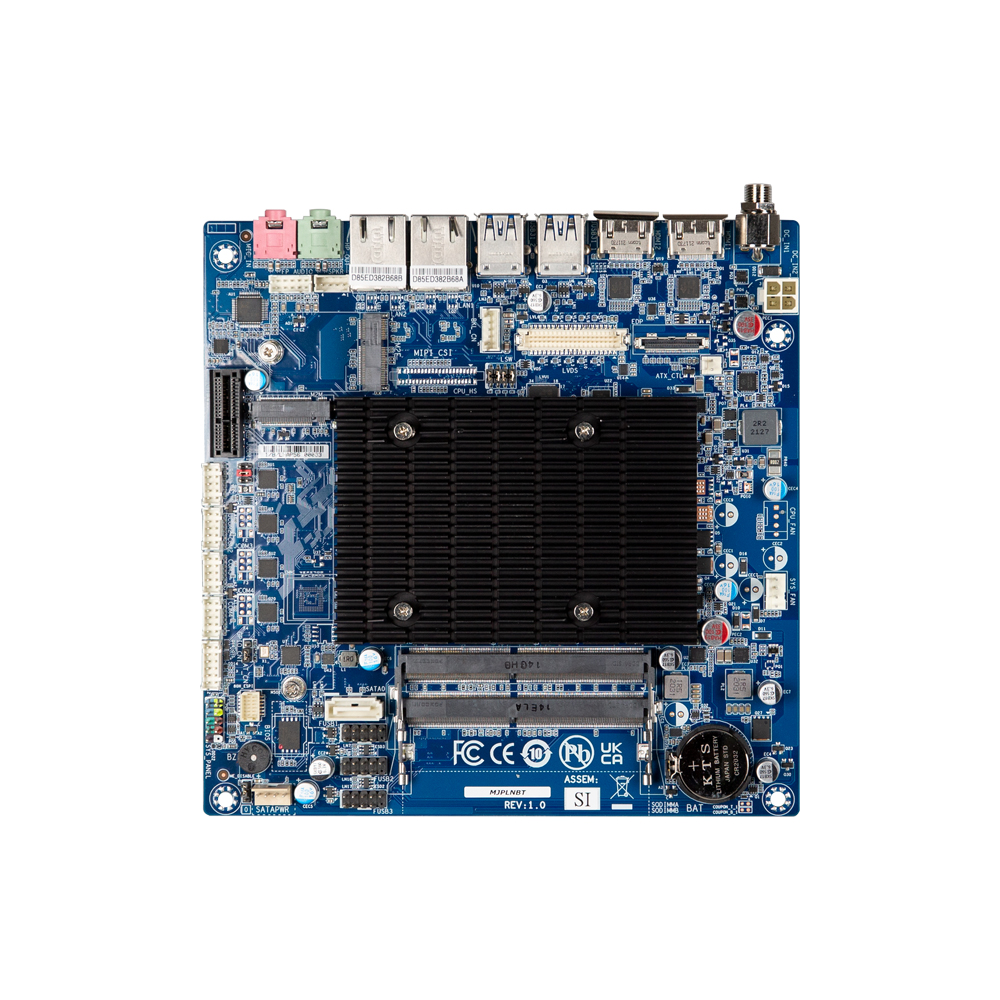

Thin Mini-ITX

170W x 170D(mm)

Intel® Celeron® N4500 Processor

10nm, 2 cores, 2 threads, up to 2.80 GHz

TDP 6W

1 x FCBGA1338

2 x DDR4 SO-DIMM sockets, Max. Capacity 16 GB

Support Dual channel DDR4 2933 MHz memory modules

2 x GbE LAN Ports (Realtek® RTL8118-CG)

Integrated Graphics Processor - Intel® UHD Graphics:

2 x HDMI 2.0 port, supporting a maximum resolution of 3840x2160 @60Hz

1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz

1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz

(3 independent display outputs)

1 x SATA 6Gb/s Port

1 x PCIe x1 (Gen3 x1)

1 x 2280 M.2 M-Key (SATA 6Gb/s)

1 x 2230 M.2 E-Key

1 x 4-pin ATX main power connector

1 x ATX control header (For Standard ATX PSU use)

1 x SATA power connector

1 x System fan header

1 x Front panel header

1 x Front panel audio header

1 x 2W Speaker out header

6 x USB 2.0 headers

1 x COM header (RS-232/422/485 & RI/5V/12V)

3 x COM headers (RS-232)

1 x GPIO (8 bits) & SMBus header

1 x Backlight Control header

1 x AT/ATX mode select jumper

2 x Audio Jacks (Line out, Mic in)

2 x HDMI

2 x RJ45 LAN Ports

4 x USB 3.2 Gen 1

1 x DC Jack (+12V~24VDC)

Windows 10 (x64)

Operating temperature: 0°C to 60°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -40°C to 85°C

Non-operating humidity: 0%-95% (non-condensing)

Carton size: 465 x 351 x 217 (mm)

Packing Capacity: 10pcs

Including:

IO Shield x 1 (P/N: 12AIO-MJPLN0-00R)

SATA Power cable x 1 (P/N: 25CRI-200B02-K1R)

9MJPLNATMR-SI (Box Packing)
