spec
Ordering Information

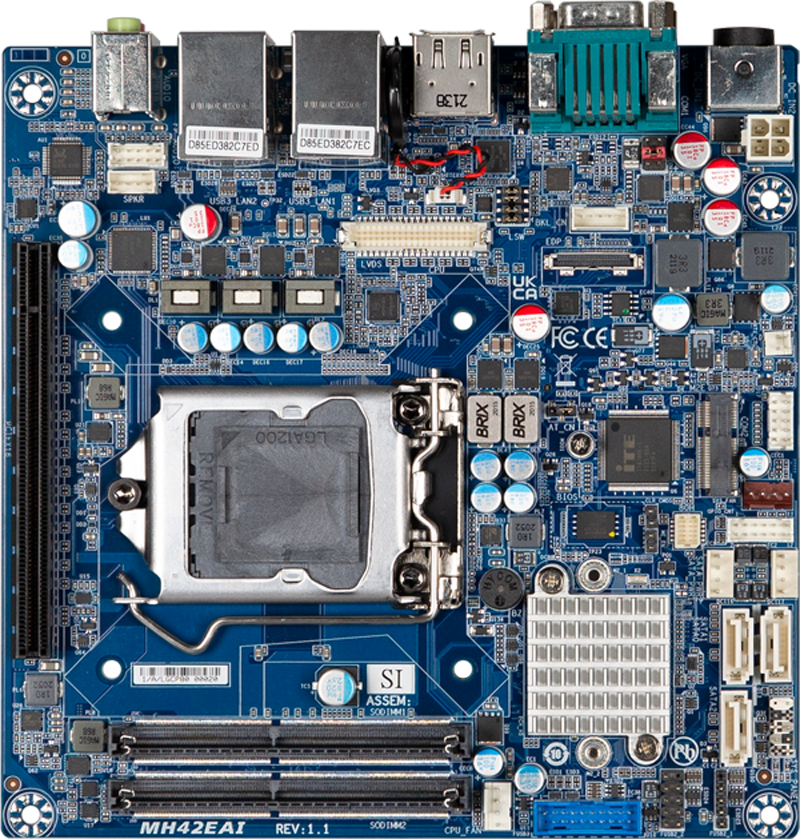

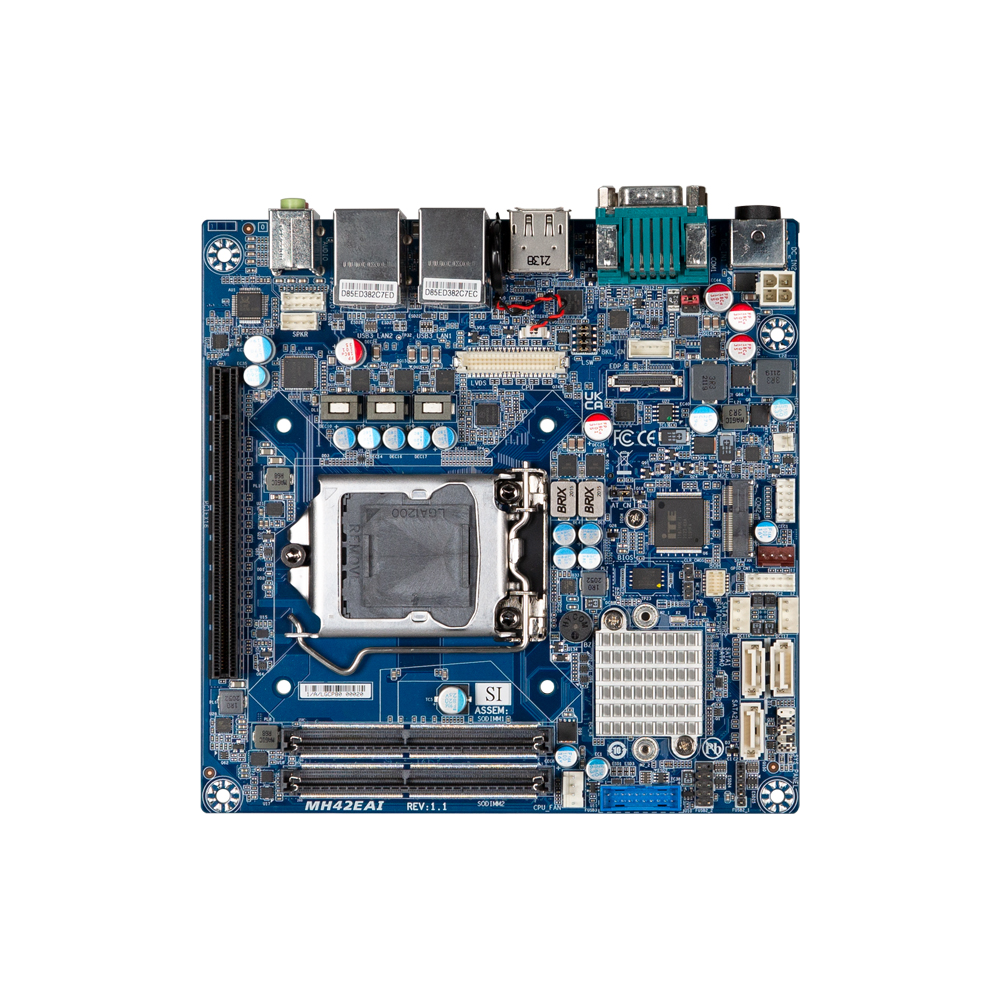

9MH42EAIMR-SI (Box Packing)
Key Features
- Mini-ITX form factor
- Support 10th Generation Intel® Core™ Processors
- Intel® H420E Express Chipset
- Dual Channel DDR4, 2 x SO-DIMMs
- 2 x GbE LAN Ports
- 3 x SATA 6Gb/s Ports
- HDMI, Display Port, D-Sub, eDP/LVDS Ports for Multiple Display
- 4 x USB 3.2 Gen 1
- 1 x COM Port (RS-232/422/485 & RI/5V/12V)
- 1 x COM Port (RS-232)
Specification
| Form Factor | Mini-ITX 170W x 170D (mm) |
| CPU | Support for 10th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1200 package TDP under 65W |
| Socket | 1 x LGA 1200 |
| Chipset | Intel® H420E Express Chipset |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 2933/2666 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Intel® I219V and Intel® I211AT) |
| Video | Integrated Graphics Processor - depends on CPU: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x DP 1.4 port, supporting a maximum resolution of 4096x2304 @60Hz 1 x D-Sub port, supporting a maximum resolution of 1920x1200 @60Hz 1 x eDP port, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 3 x SATA 6Gb/s Ports |
| Expansion Slots | 1 x PCIe x16 (Gen3 x16) 1 x 2280/2242 M.2 M-Key (PCIe x2) 1 x 2230 M.2 E-Key |
| Internal I/O | 1 x 4-pin ATX main power connector 2 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 3 x USB 2.0 headers 2 x USB 3.2 Gen 1 headers 1 x COM header (RS-232) 1 x GPIO (8 bits) & SMBUS header 1 x Backlight Control header 1 x Clear CMOS jumper 1 x Buzzer 1 x ATX Control header 1 x AT/ATX mode select jumper |

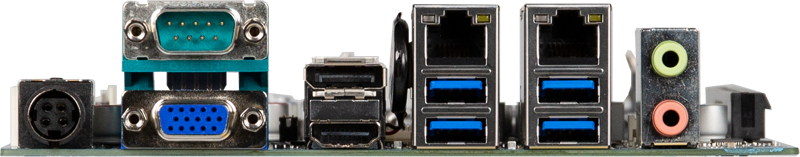

| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x COM Port (RS-232/422/485 & RI/5V/12V) 1 x HDMI 1 x Display Port 1 x D-Sub 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~+24VDC) |
| TPM | 1 x TPM header |
| OS Compatibility | Windows® 10 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: IO Shield x 1 (12AIO-MQ47EA-10R) SATA power Cable x 2 (25CRI-300B01-K1R) |
| Order Information | 9MH42EAIMR-SI (Box Packing) |
| Optional Kit | TPM 2.0 Module: 9CTM000NR-00 TPM Cable: 25CRZ-100600-S9R |
