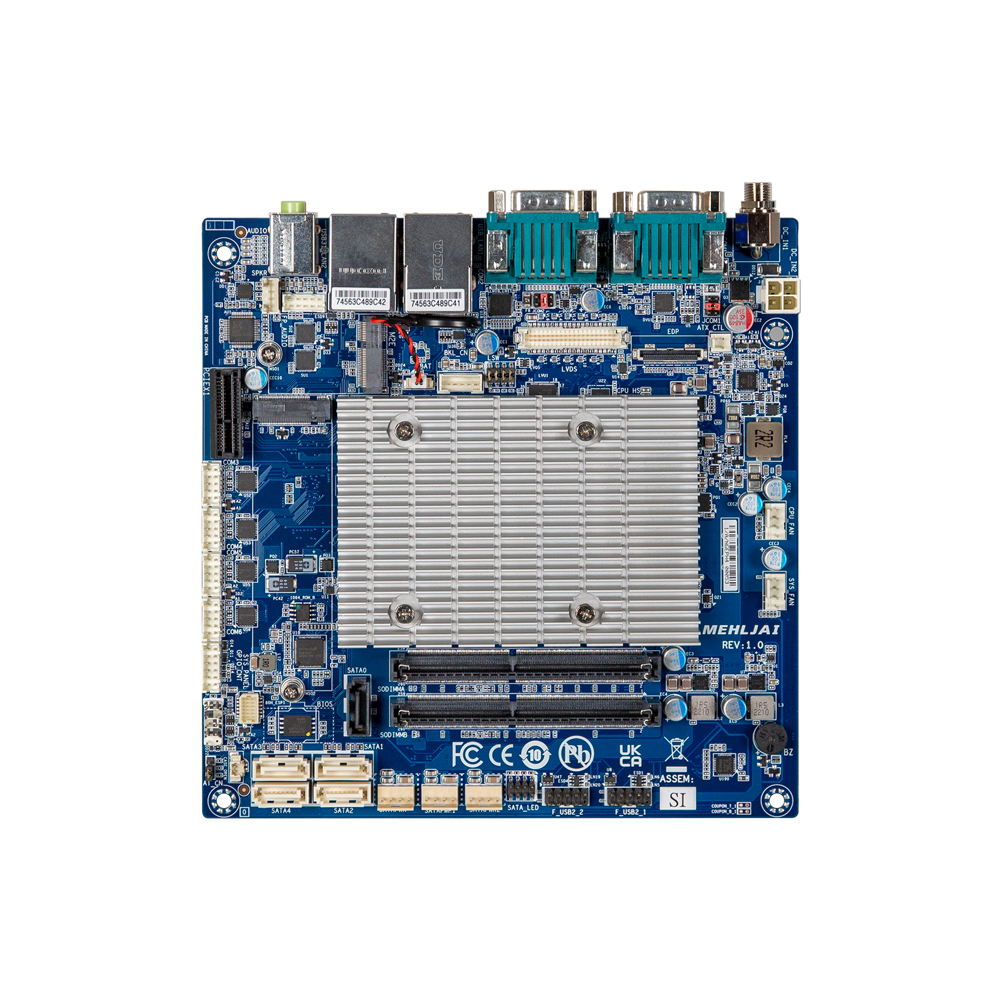

GIGAIPC mITX-6412A
  • mITX-6412A
  • Mini-ITX Embedded Motherboard with Intel® J6412 Processor, Dual Channel DDR4 memory, PCIe, 6 x COM, 5 x SATA 6Gb/s, 8 x USB





Specification
Form FactorMini-ITX
170W x 170D(mm)
CPUIntel® Celeron® J6412 Processor
10nm, 4 cores, 4 threads, up to 2.60 GHz
TDP 10W
Socket1 x FCBGA 1493
Memory2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB
Support Dual Channel DDR4 3200 MHz memory modules
Ethernet2 x GbE LAN Ports (Realtek® RTL8111H)
VideoIntegrated Graphics Processor -
Intel® UHD Graphics for 10th Gen Intel® Processors:
1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz
1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz
1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz
1 x eDP port, supporting a maximum resolution of 3840x2160 @60Hz
* eDP connector is alternative with LVDS port, only one can be worked at the same time

(3 independent display outputs)
AudioRealtek® ALC897
Storage5 x SATA 6Gb/s Ports
(4 x Asmedia ASM1064)
(1 x supports SATA DOM)
Expansion Slots1 x PCIe x1 (Gen 3x1)
1 x 2280 M.2 M-Key (SATA 6Gb/s)
1 x 2230 M.2 E-Key
Internal I/O1 x 4-pin ATX main power connector
3 x SATA power connectors
1 x CPU fan header
1 x System fan header
1 x Front panel header
1 x Front panel audio header
1 x 2W Speaker out header
4 x USB 2.0 headers
4 x COM headers (RS-232)
1 x GPIO (8 bits) & SMBus header
1 x Case open header
1 x AT/ATX mode select jumper
1 x Backlight Control header
1 x Buzzer
4 x SATA LED header
1 x ATX Control header
Rear I/O2 x Audio Jacks (Line out, Mic in)
2 x COM Ports (RS-232/422/485 & RI/5V/12V)
1 x HDMI
1 x VGA
2 x RJ45 LAN Ports
2 x USB 2.0
2 x USB 3.2 Gen 1
1 x DC Jack (+12V/+19V~+24VDC)
TPMOnboard TPM 2.0 security chip
Infineon SLB9670VQ2.0
OS CompatibilityWindows 10 (x64)
Operating PropertiesOperating temperature: 0°C to 60°C
Operating humidity: 0-90% (non-condensing)
Non-operating temperature: -40°C to 85°C
Non-operating humidity: 0%-95% (non-condensing)
Packing ContentCarton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size : 221 x 178 x 65 (mm)

Including:
IO Shield x 1 (P/N: 12AIO-MEHLJA-10R)
SATA power Cable x 3 (P/N: 25CRI-300B01-K1R)
Order Information9MEHLJAIMR-SI (Box packing)
