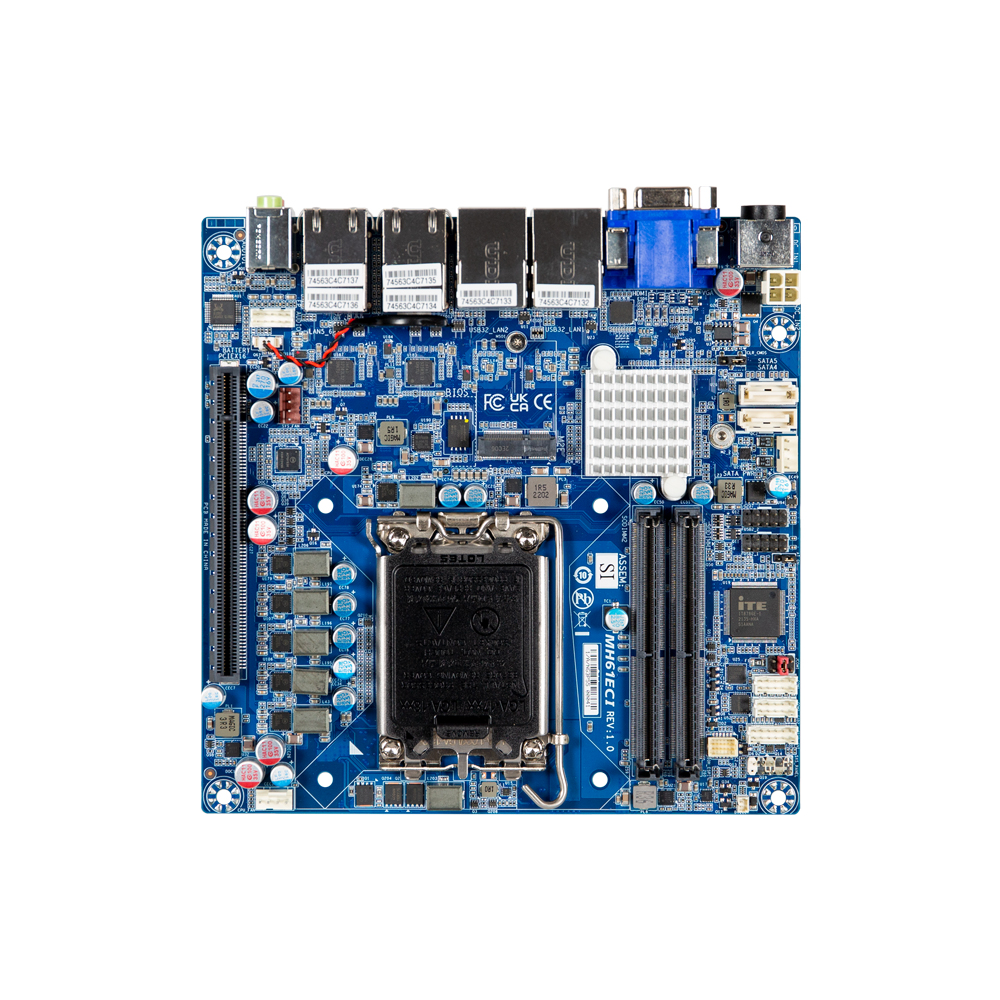

Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
Specification
| Form Factor | Mini-ITX 170W x 170D(mm) |
| CPU | Support for 13th/12th Generation Intel® Core™ i9/i7/i5/i3, Pentium® and Celeron® processors in the LGA1700 package TDP under 65W |
| Socket | 1 x LGA 1700 |
| Chipset | Intel® H610E Chipset |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 3200 MHz memory modules |
| Ethernet | 6 x 2.5GbE LAN Ports (Intel® I226V) |
| Video | Integrated Graphics Processor - depends on CPU: 1 x HDMI 2.0 port, supporting a maximum resolution of 4096x2160 @60Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (2 independent display outputs) |
| Audio | Realtek® Audio codec |
| Storage | 2 x SATA 6Gb/s Ports |
| Expansion Slots | 1 x PCIe x16 (Gen 4x16) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) |
| Internal I/O | 1 x 4-pin ATX main power connector 1 x SATA power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 4 x USB 2.0 headers 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x COM header (RS-232) 1 x GPIO (8-bits) & SMBus header 1 x Clear CMOS jumper 1 x Buzzer header 1 x AT/ATX mode select jumper |
| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 1 x HDMI 1 x VGA 6 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V/+19V~24VDC) |
| TPM | Onboard TPM 2.0 security chip Infineon SLB9670VQ2.0 |
| OS Compatibility | Windows 10/11 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size : 221 x 178 x 65 (mm) Including: IO Shield x 1 (P/N: 12AIO-MH61EC-00R) SATA power Cable x 1 (P/N: 25CRI-300B01-K1R) |
| Order Information | 9MH61ECIMR-SI (Box packing) |
| Optional Kit | CPU Cooler : 25ST0-037820-Y0R CPU Cooler Backplate : 12KRH-0A1700-00R |
