Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
Specification

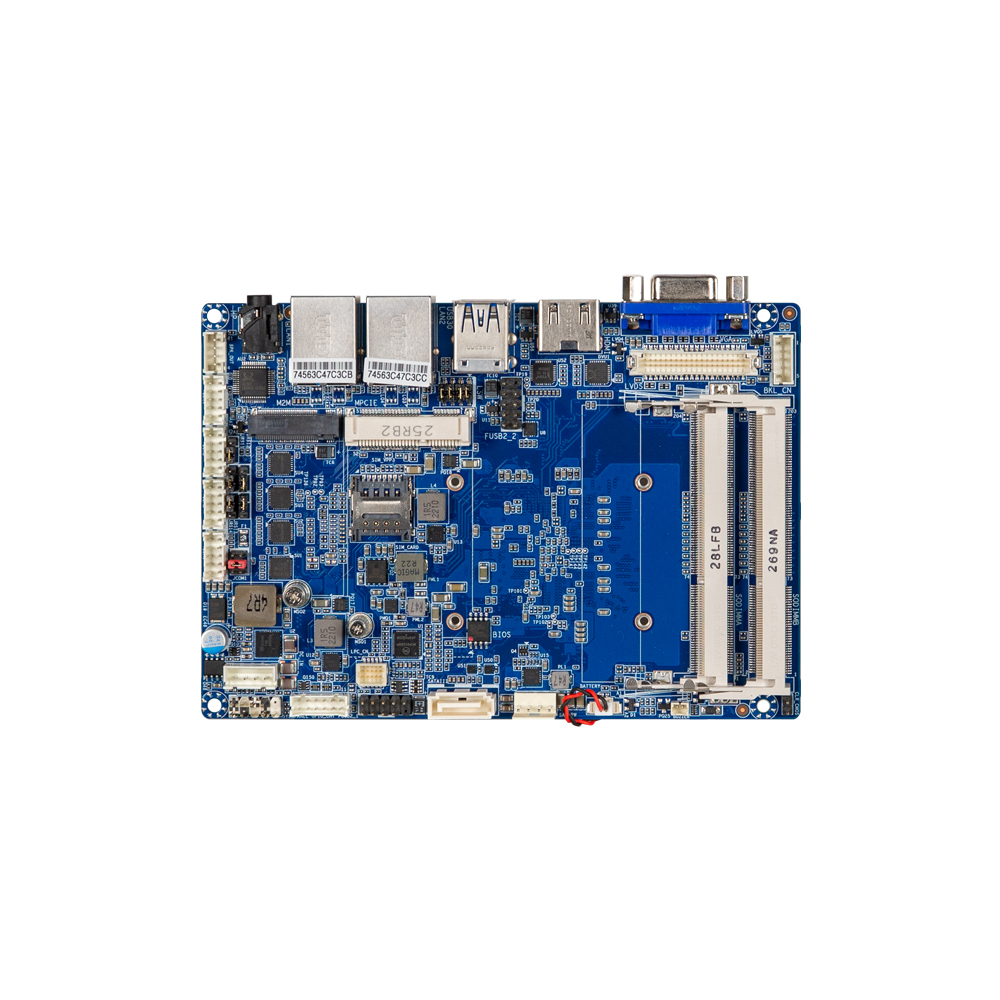

| Form Factor | 3.5" SBC 146W x 101.7D(mm) |
| CPU | Intel® Pentium® N4200 Processor 14nm, 4 cores, 4 threads, up to 2.50 GHz TDP 6W |
| Socket | 1 x FCBGA 1296 |
| Memory | 2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual channel DDR3L 1866 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111H) |
| Video | Integrated Graphics Processor -Intel® HD Graphics 505: 1 x HDMI 1.4 port, supporting a maximum resolution of 3840x2160 @30Hz 1 x VGA port, supporting a maximum resolution of 1920x1080 @60Hz (with compatible displays) 1 x LVDS port, supporting a maximum resolution of 1920x1200 @60Hz (3 independent display outputs) |
| Audio | Realtek® ALC897 |
| Storage | 1 x SATA 6Gb/s Port 1 x eMMC 32GB |
| Expansion Slots | 1 x 2242 M.2 M-Key (SATA 6Gb/s) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) -- support 3G/4G module |
| Internal I/O | 1 x 4-pin box power connector (+9V~36VDC) 1 x SATA Power header 1 x System fan header 1 x Front panel header 1 x 2W Speaker out header 4 x USB 2.0 headers 3 x COM headers (RS-232) 1 x COM header (RS-232/422/485 & RI/5V/12V) 1 x Backlight Control header 1 x AT/ATX mode select jumper 1 x GPIO (8-bits) & SMBus header 1 x Buzzer header ＊Conditional DC-input 9V support with : (1) SATA_PWR support 5V only (2) LVDS backlight cannot support (3) Total power consumption under 50W |
| Rear I/O | 1 x Headphone Jack 1 x HDMI 1 x VGA 2 x RJ45 LAN Ports 2 x USB 3.2 Gen 1 |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to +60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to +85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 465 x 351 x 217 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Including: SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) |
| Order Information | 9MAPLNASMR-SI (Box Packing) |
| Optional Kit | TPM 2.0 module P/N: 9CTM000NR-00 TPM Cable P/N: 25CRZ-100600-S9R |
