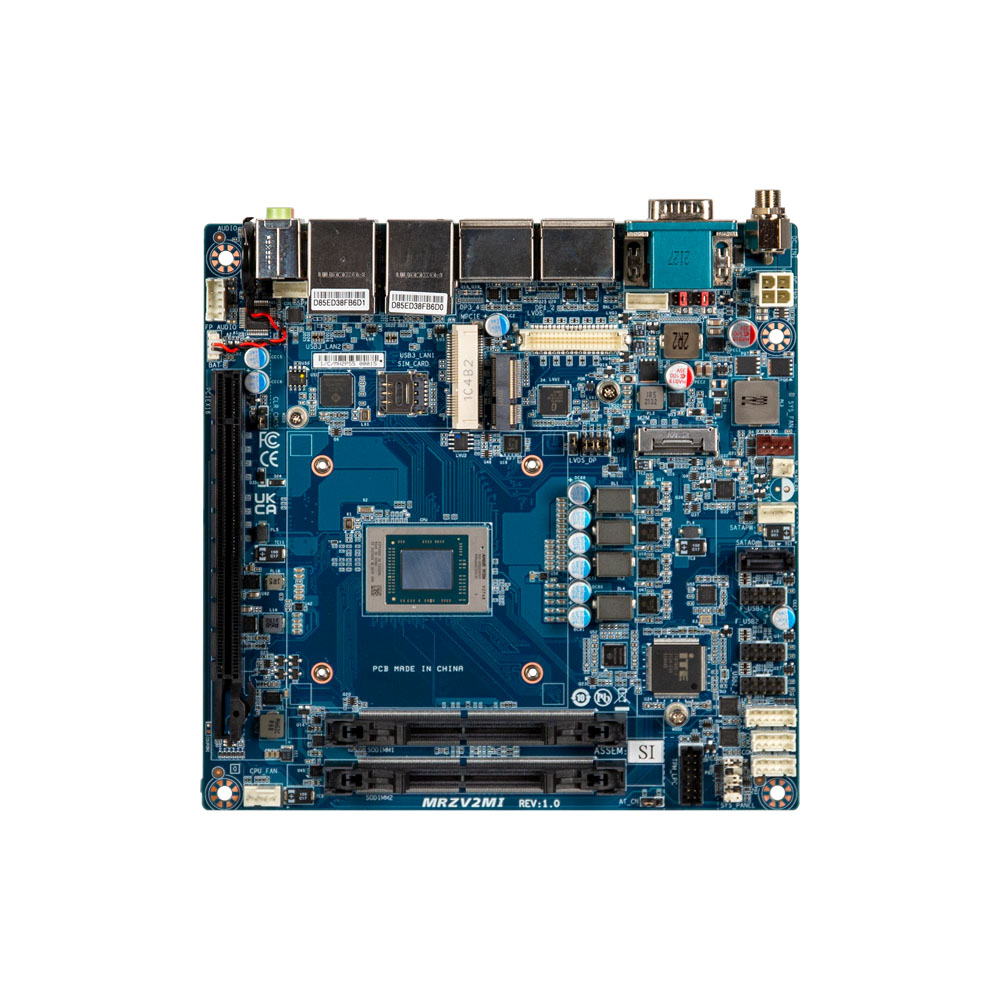

Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
Specification
| Form Factor | Mini-ITX 170W x 170D(mm) |
| CPU | AMD Ryzen™ V2748 Embedded Processor 7nm, 8 cores, 16 threads, 2.9 GHz, up to 4.25GHz TDP 45W |
| Socket | 1 x FP6 BGA |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 64 GB Support Dual channel DDR4 3200 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8118-CG) |
| Video | Integrated Graphics Processor - AMD Radeon™ Graphics: 4 x DP ports, supporting a maximum resolution of 4096x2160 @60Hz 1 x LVDS port, supporting a maximum resolution of 1080P (switch from DP) (4 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 1 x SATA 6Gb/s Port |
| Expansion Slots | 1 x PCIe x16 (Gen3x8) 1 x 2280 M.2 M-Key (PCIe x4, SATA 6Gb/s) 1 x 2230 M.2 E-Key 1 x Full-size mini PCIe with SIM slot |
| Internal I/O | 1 x 4-pin ATX power connector 1 x SATA power connector 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 6 x USB 2.0 headers 2 x COM headers (RS-232/422/485) 1 x GPIO (8 bits) & SMBus header 1 x Backlight Control header 1 x LVDS/ DP Jumper 1 x AT/ATX mode select jumper 1 x ATX Control header 1 x Clear CMOS jumper |
| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 2 x COM Ports (RS-232/422/485 & RI/5V/12V) 4 x Display Ports 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12V~24VDC) |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 556 x 476 x 244 (mm) Packing Capacity: 10pcs Single Box size: 206 x 223 x 105 (mm) Single Box weight: Approx. 1.0kg Including: IO Shield x 1 (P/N: 12AIO-MRZNV1-00R) SATA power Cable x 1 (P/N: 25CRI-200B02-K1R) Fansink x 1 (P/N: 25ST0-0Z7820-Y0R) |
| Order Information | Fan version: 9MRZV2MIMR-SI (Box packing) |
| Optional Kit | TPM 2.0 module: 9CTM000NR-00 |
