Industrial PC
더 나은 삶을 제공하고자 최선을 다하겠습니다.
Specification

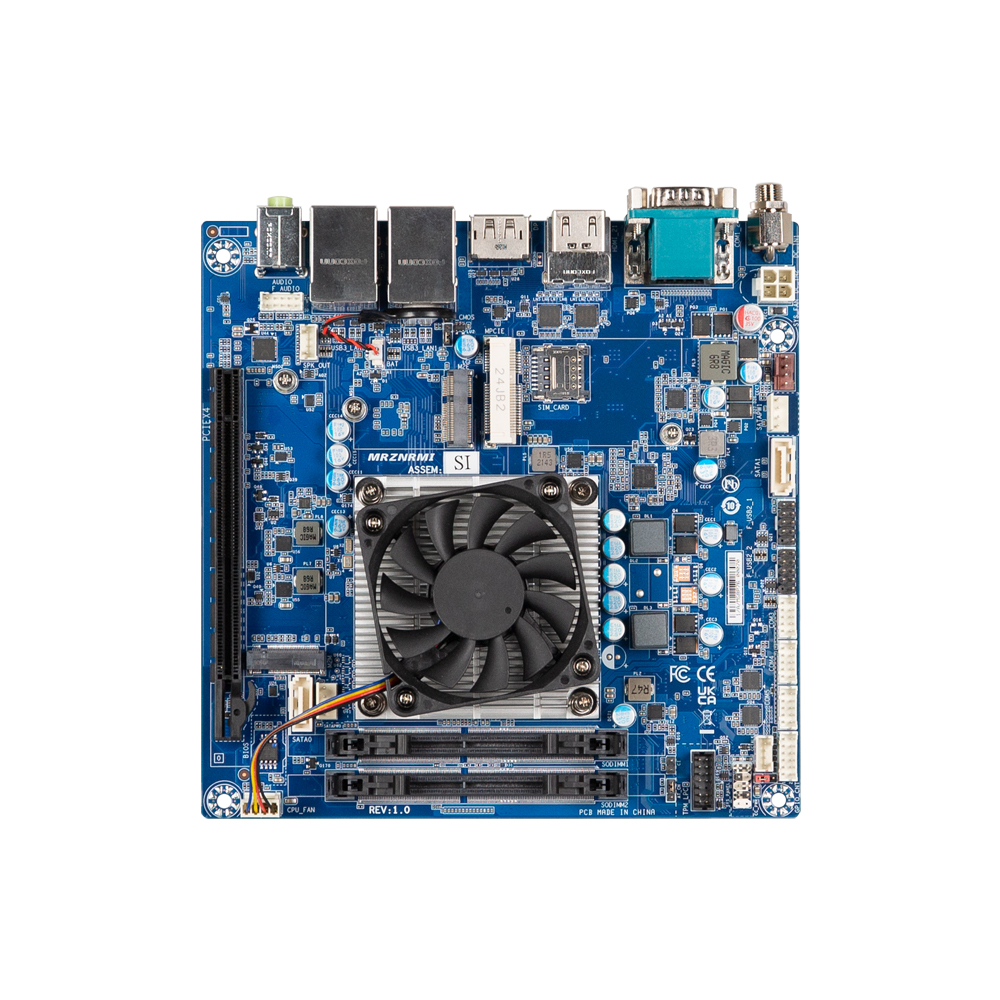

| Form Factor | Mini-ITX 170W x 170D (mm) |
| CPU | AMD Ryzen™ R1505G Embedded Processor with Radeon™ Vega 3 Graphics 2 cores, 4 threads, 2.4GHz, up to 3.3GHz TDP 25W |
| Socket | 1 x FP5 Type 1 |
| Chipset | SoC |
| Memory | 2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB Support Dual channel DDR4 2400 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports |
| Video | Integrated Graphics Processor - AMD Radeon™ Vega 8 Graphics: 2 x HDMI 2.0, supporting a maximum resolution of 4096x2160 @60Hz 1 x Display port, supporting a maximum resolution of 3840x2160 @60Hz (3 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Storage | 2 x SATA 6Gb/s ports |
| Expansion Slots | 1 x PCIe x16 (Gen3 x4) 1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (PCIe x1 + USB 2.0) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB 2.0) |
| Internal I/O | 1 x 4-pin ATX main power connector 2 x SATA power connectors 1 x CPU fan header 1 x System fan header 1 x Front panel header 1 x Front panel audio header 1 x 2W Speaker out header 1 x Chassis Intrusion detect header 4 x USB 2.0 headers 3 x COM header (RS-232) 1 x ccTalk header 1 x GPIO (8 bits) & SMBus header 1 x Clear CMOS jumper 1 x AT/ATX mode select jumper |
| Rear I/O | 2 x Audio Jacks (Line out, Mic in) 2 x COM Ports (RS-232) 2 x HDMI 1 x Display Port 2 x RJ45 LAN Ports 4 x USB 3.2 Gen 1 1 x DC Jack (+12~24VDC) |
| TPM | 1 x TPM header |
| OS Compatibility | Windows 10 (x64) |
| Operating Properties | Operating temperature: 0°C to 60°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packing Content | Carton size: 556 x 476 x 244 (mm) Packing Capacity: 10pcs Single Box size: 221 x 178 x 65 (mm) Single Box weight: Approx. 0.8kg Including: IO Shield x 1 (P/N: 12AIO-MRZRMI-00R) SATA power Cable x 1 (P/N: 25CRI-300003-S9R) Gasket for HDMI connector x 2 (P/N: 25BE0-MRZN00-S1R) |
| Order Information | 9MRZNRMIMR-SI (Box packing) |
| Optional Kit | TPM 2.0 module : 9CTM000NR-00 |
