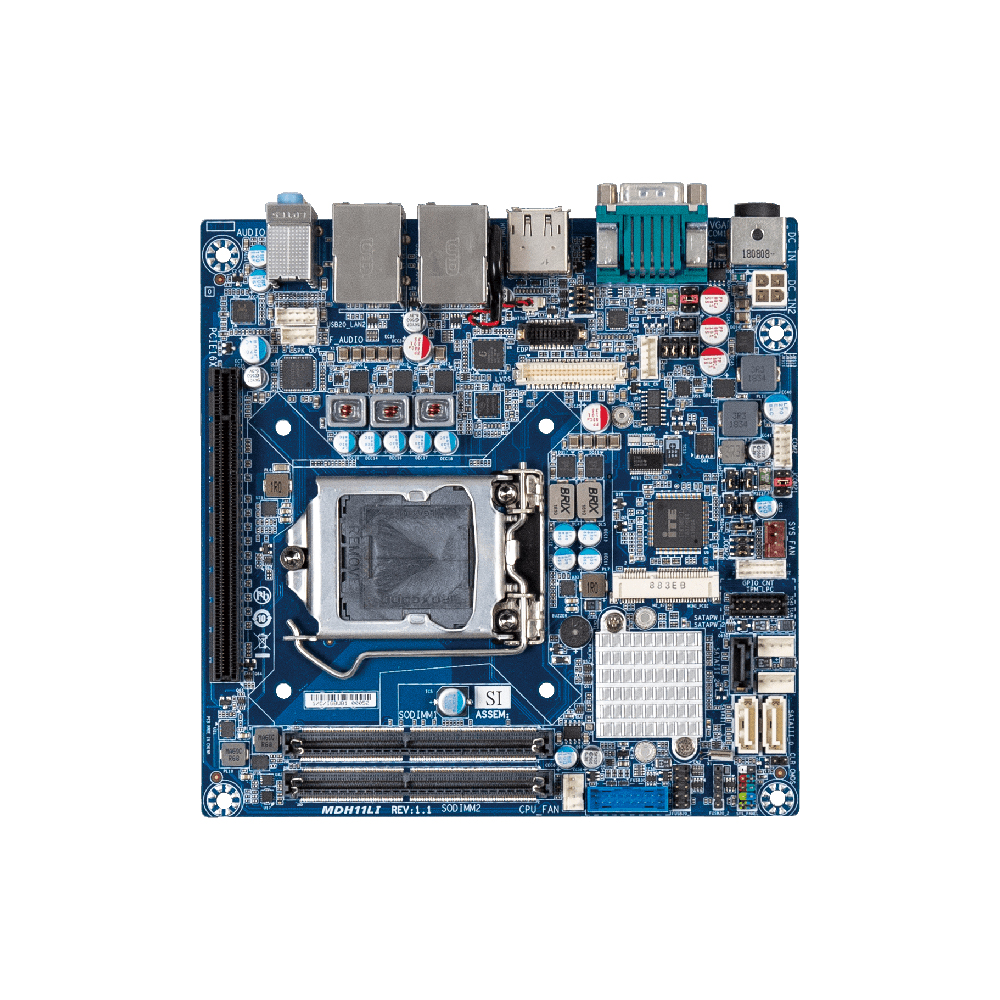

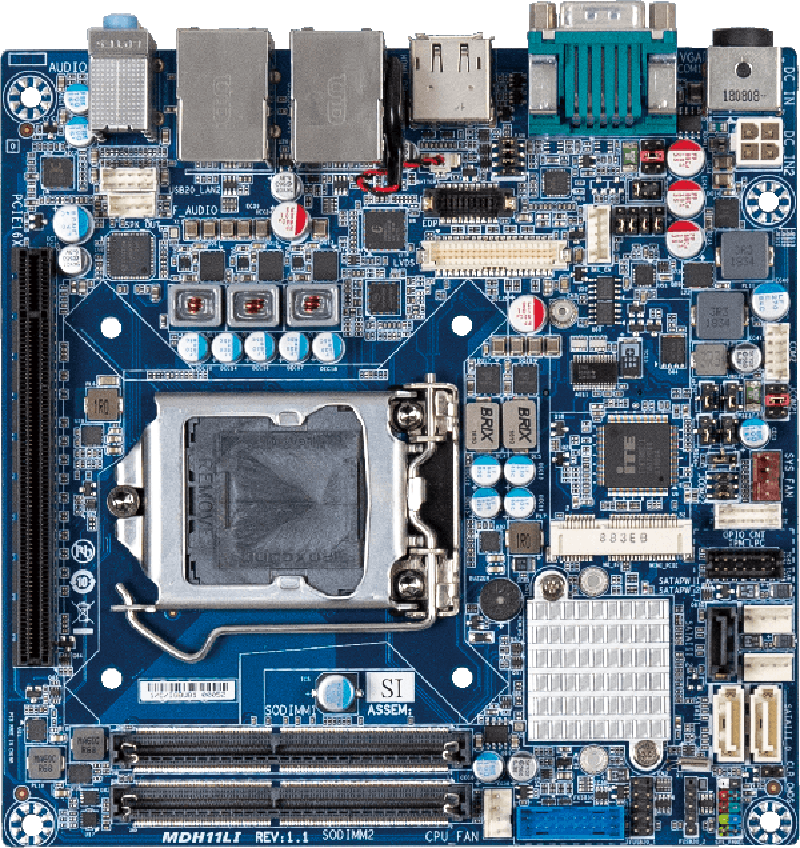

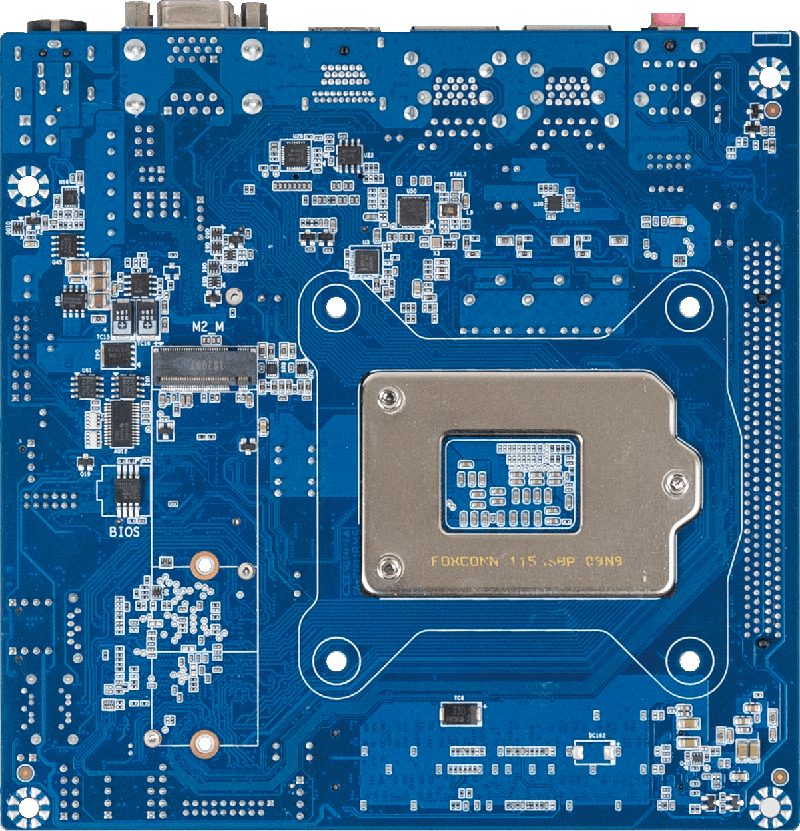

GIGAIPC mITX-H110A
  • Mini-ITX with Intel® H110 Chipset, support 7th/6th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® Processor
  • Dual channel DDR4 memory, PCIe, 2 x COM, 9 x USB, 3 x SATA 6Gb/s
spec
Ordering Information
9MDH11LIMR-SI (Box packing)
Key Features
  • Mini-ITX form factor
  • Support 7th/6th Generation Intel® Core™ i7/i5/i3, Pentium® and Celeron® Processors
  • Intel® H110 Express Chipset
  • Dual Channel DDR4, 2 x SO-DIMMs
  • 2 x GbE LAN Ports
  • 3 x SATA 6Gb/s Ports with a SATA DOM supported
  • 1 x 2280/2242 M.2 M-Key Storage SATA Slot
  • HDMI, Display Port, VGA, LVDS/eDP ports for multiple display
  • 2 x COM Ports (RS-232/422/485 & RI/5V/12V)





















Specification


Form Factor

Mini-ITX

170W x 170D(mm)

CPU

Support for 7th/6th Generation

Intel® Core™ i7/i5/i3, Pentium® and Celeron® processors in the LGA1151 package

TDP under 65W

L3 cache varies with CPU

Socket

1 x LGA 1151

Chipset

Intel® H110 Express Chipset

Memory

2 x DDR4 SO-DIMM sockets, Max. Capacity 32 GB

Support Dual channel DDR4 2400/2133 MHz memory modules

Ethernet

2 x GbE LAN Ports (Intel® I219V and Intel® I211AT)

Video

Integrated Graphics Processor - depends on CPU:

1 x HDMI 1.4 port, supporting a maximum resolution of 4096x2160 @30Hz

1 x DP port, supporting a maximum resolution of 4096x2160 @60Hz

1 x VGA port, supporting a maximum resolution of 1920x1200 @60Hz

1 x eDP port, supporting a maximum resolution of 1920x1080 @60Hz

1 x LVDS port, supporting a maximum resolution of 1920x1080 @60Hz

* eDP port is alternative with LVDS port, only one can be worked at the same time


(2 independent display outputs)

Audio

Realtek® Audio Codec

Storage

3 x SATA 6Gb/s Ports

(incl. 1 x SATA supports SATA DOM)

Expansion Slots

1 x PCIe x16 (Gen3 x16)

1 x 2280/2242 M.2 M-Key (SATA 6Gb/s)

1 x Full-size Mini-PCIe

Internal I/O

1 x 4-pin ATX main power connector

2 x SATA power connectors

1 x CPU fan header

1 x System fan header

1 x Front panel header

1 x Front panel audio header

1 x 2W Speaker out header

3 x USB 2.0 headers

2 x USB 3.2 Gen 1 headers

1 x COM header (RS-232/422/485 & RI/5V/12V)

1 x GPIO (8-bits) & SMBUS header

1 x Backlight Control header

1 x Clear CMOS jumper

1 x Buzzer

1 x AT/ATX mode select jumper

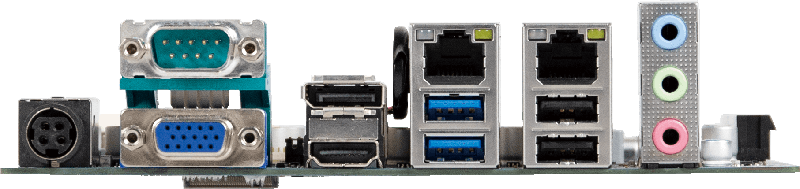

Rear I/O

3 x Audio Jacks (Line in, Line out, Mic in)

1 x COM Port (RS-232/422/485 & RI/5V/12V)

1 x HDMI

1 x Display Port

1 x VGA

2 x RJ45 LAN Ports

2 x USB 2.0

2 x USB 3.2 Gen 1

1 x DC Jack (+12V/+19V/+24VDC)

TPM

1 x TPM header

OS Compatibility

Windows 10 (x64)

Windows 7 (x64)

Operating Properties

Operating temperature: 0°C to 60°C

Operating humidity: 0-90% (non-condensing)

Non-operating temperature: -20°C to 70°C

Non-operating humidity: 0%-95% (non-condensing)

Packing ContentCarton size: 465 x 351 x 217 (mm)
Packing Capacity: 10pcs

Single Box size: 221 x 178 x 65 (mm)
Single Box weight: Approx. 0.6kg

Including:
IO Shield x 1 (P/N: 12AIO-MDH114-00R)
Screw Flat Head M2*2.5 x 1 (P/N: 12KS2-110202-01R)
Screw Stand Off x 1 (P/N: 12KSF-F10303-20R)
SATA power Cable x 1 (P/N: 25CRI-200B02-K1R)
Screw I Head M2x3L x 1 (P/N: 25KSG-130032-S0R)
Order Information

9MDH11LIMR-SI (Box packing)

Optional Kit

TPM 2.0 module: 9CTM000NR-00
